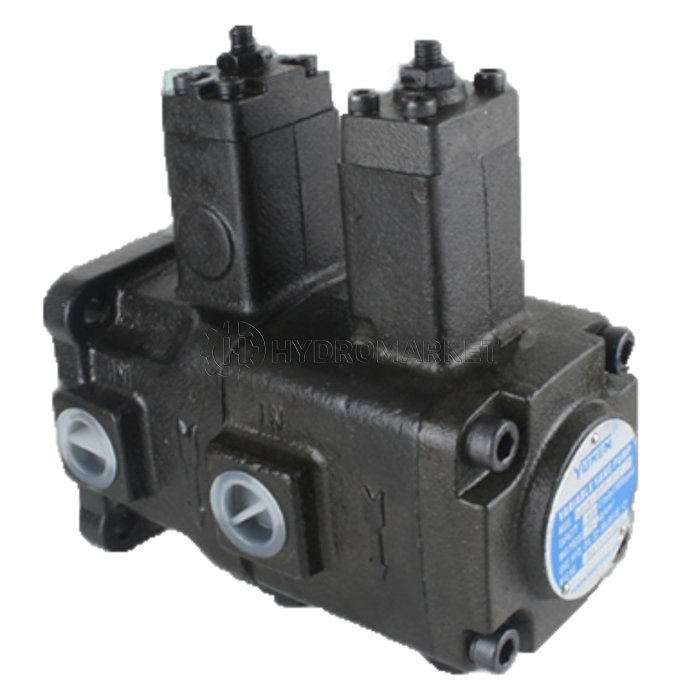

Variable vane pump hydraulic double SVPDF-4070-4070-20 YUKEN
Main image
Click to view image in fullscreen
![]()
Karakteristik Variable Vane Pump SVPDF-4070-4070-20 YUKEN
Nama Produk
SVPDF-4070-4070-20 (double fariable vane pump)
Maximal Pressure
70 Bar / 7 Mpa / 1020 psi
Flow
40 Lpm at 1,800 Rpm
Displacement
22,2 cc
Maximal Speed
1,800 Rpm
Mounting
Baut ke baut 90mm (4 Square)
Spigot / Nok
95mm
Shaft / As
19mm - keyed (SPI)
Dimensi SPI
4,76 x 4,76 x 28,5 mm
Port Suction / Hisap
RC 3/4
Port Discharge / Pressure
RC - 1/2
Port Drain
RC 1/4
Persediaan
SKU
m_100065684
Deskripsi / Variable vane pump hydraulic double SVPDF-4070-4070-20 YUKEN
Karakteristik Variable Vane Pump SVPDF-4070-4070-20 YUKEN
| Nama Produk | SVPDF-4070-4070-20 (double fariable vane pump) |
|---|---|
| Maximal Pressure | 70 Bar / 7 Mpa / 1020 psi |
| Flow | 40 Lpm at 1,800 Rpm |
| Displacement | 22,2 cc |
| Maximal Speed | 1,800 Rpm |
| Mounting | Baut ke baut 90mm (4 Square) |
| Spigot / Nok | 95mm |
| Shaft / As | 19mm - keyed (SPI) |
| Dimensi SPI | 4,76 x 4,76 x 28,5 mm |
| Port Suction / Hisap | RC 3/4 |
| Port Discharge / Pressure | RC - 1/2 |
| Port Drain | RC 1/4 |
Informasi Lebih Lanjut
| Jenis koneksi | ISO |
|---|---|
| Negara | Baru |
| Masa garansi, bulan | 12 |
| Negara Asal | Taiwan |
| Merek | YUKEN |
