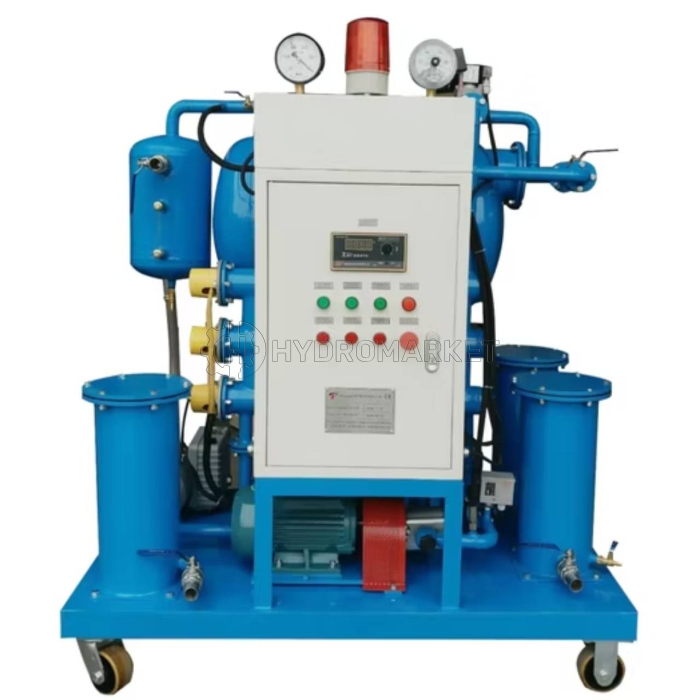

TYA Stainless Steel Gear Oil Filtration Machine

Stainless Steel Gear Oil Filtration Machine

Series TYA lube oil purifier is widely used in metallurgy, machinery, oil fields, chemistry, mining, electric power generation, transportation, and manufacturing industries. It is designed for purification of various industrial oils including: hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil, etc. The system removes water, gas, mechanical impurities, light acids, and light hydrocarbons from oil. It improves oil quality, restores lubricating properties, and ensures the normal operation of equipment.

Product Features

1. Three-stage filtration system (primary, secondary, and fine filters) with large capacity and high filtration precision.
2. Uses special polymer filter media with functions of dewatering, particle removal, and emulsion breaking.
3. Duplex-stereo film evaporation technology combined with advanced dewatering and degassing components for fast and efficient removal of water, gas, and volatile matter (alcohol, gasoline, ammonia, etc.).
4. Equipped with automatic backwashing system for improved efficiency and maintenance.
5. Advanced air cooling system for better heat dissipation and safe operation.
6. Interlocked protection system connects the oil pump, heater, and liquid level sensor, preventing dry running, oil leakage, and electrical issues. The machine automatically powers off in case of a fault.
7. Efficient electric heating system with uniform heating, lower energy consumption, and safe, reliable operation.
8. High-quality filtration components with corrosion resistance, excellent mechanical performance, large capacity, and long service life.

Technical Parameters
