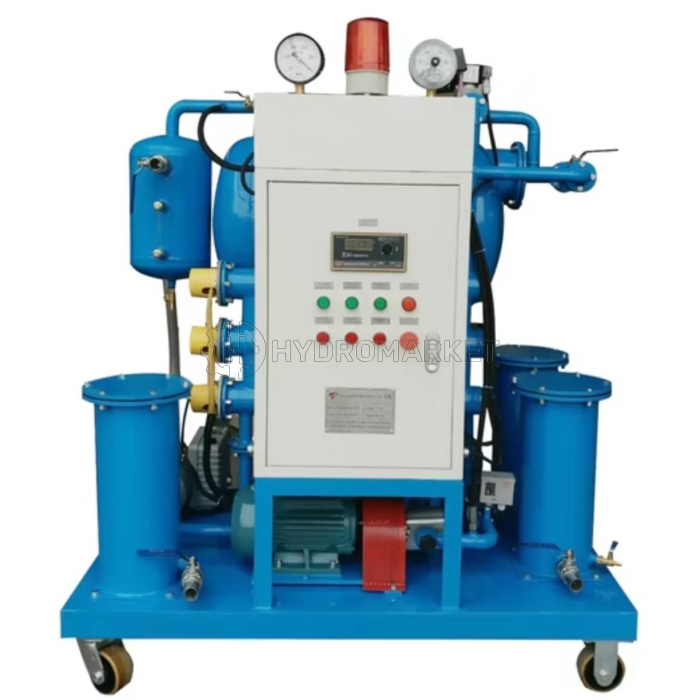

TY China Supplier Turbine Oil Filtration Machine
TY series oil filtration equipment is specially designed for purifying turbine lubricating oil. It is also suitable for hydraulic oil, coolant oil, and other lubricants containing large amounts of water, vapor, impurities, sludge, dielectric materials, and colloids. The system eliminates these contaminants effectively, improving the quality of turbine oil and extending maintenance intervals of turbines and other lubrication-based machinery.
Description
TY series turbine oil purifiers are developed using vacuum evaporation, coacervation, coalescence, separation engineering, and refined purification technologies. They efficiently remove water, gas, impurities, colloids, and dielectric substances under high vacuum, renewing waste oil and prolonging equipment life. Turbines and other systems with lubrication mechanisms often experience performance issues due to oil deterioration caused by water and impurities. TY series solves this problem by restoring oil quality and protecting mechanical components.
Features
- Uses special polymeric materials and vacuum separation to efficiently break emulsification and remove contaminants.
- Supports on-line filtration with turbines and water turbines.
- Equipped with duplex stereo flash evaporation technology.
- Temperature controller protects the machine from overheating.
- Multi-stage precision filtration with mesh filters and molecular adsorption.
- Efficient heating system ensures uniform heat and low energy consumption.
- Oil-level float and dual infrared liquid level control prevent overflows and leakage.
- Pressure and interlocked protection systems connect key components; system powers off automatically in case of fault.
Special Features
This oil purifier removes:
- Contaminants down to <5 microns
- Water content down to 60 PPM
- Air and gases down to 0.1%
- Oxidized molecules from turbine oils
Technical Parameters
Index Name | Unit | TY-10 | TY-20 | TY-30 | TY-50 | TY-100 | TY-150 | TY-200 | TY-300 |
---|---|---|---|---|---|---|---|---|---|
Flow Rate | L/h | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Working Vacuum | MPa | -0.06 ~ -0.095 | |||||||
Working Pressure | MPa | ≤ 0.4 | |||||||
Temperature Range | °C | 20 ~ 80 | |||||||
Power Supply | - | 380V, 50Hz, 3Ph (customizable) | |||||||
Working Noise | dB(A) | ≤65 | ≤70 | ≤70 | ≤75 | ≤78 | ≤78 | ≤80 | ≤80 |
Heating Power | kW | 12 | 15 | 18 | 24 | 45 | 60 | 72 | 84 |
Total Power | kW | 14 | 17 | 20 | 27 | 48 | 66 | 81 | 97 |
Inlet/Outlet Diameter | mm | Φ25 | Φ25 | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 |
Weight | kg | 400 | 450 | 500 | 600 | 800 | 1000 | 1100 | 1550 |
Dimensions (L×W×H) | mm | 1280×750×1450 | 1350×900×1450 | 1350×950×1500 | 1350×1000×1800 | 1500×1000×1800 | 1500×1200×1800 | 1600×1350×1800 | 1650×1350×1850 |
Informasi Lebih Lanjut
Negara | Baru |
---|---|
Masa garansi, bulan | 12 |
Negara Asal | Cina |
Merek | Toptester |
