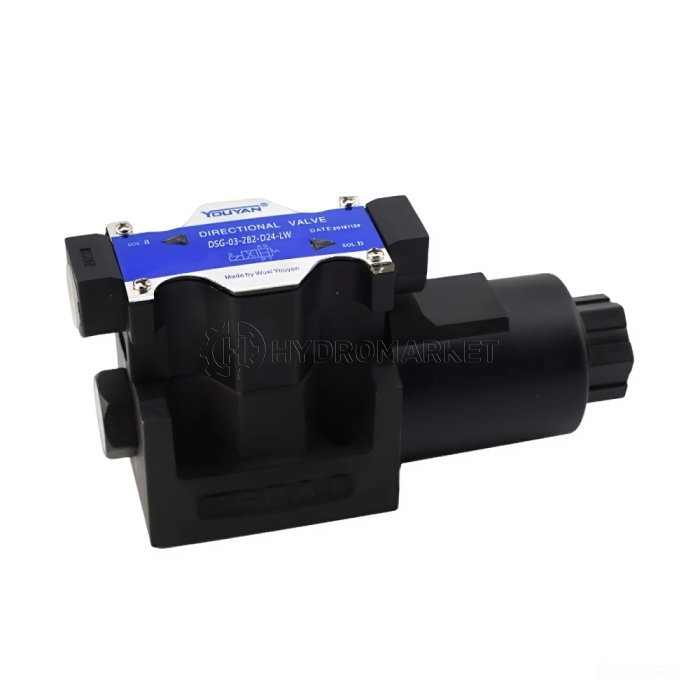

Solenoid Directional Valve DSG-03-2B2-A240-50 AC 240V

DSG-03-2B2-A240-50 is an electromagnetic directional control valve from DSG-03 series, designed to manage the flow direction of hydraulic fluids in various industrial applications.

Fitur Utama Solenoid Valve Seri DSG-03:

• High Operating Pressure and Flow Capacity: Standard models in the DSG-03 series can handle maximum operating pressures up to 31.5 MPa and flow rates up to 120 L/min. ​
• Low Noise and Durability: Utilizing wet-type solenoids, these valves ensure low noise levels, extended service life, and prevent external oil leakage. ​
• Stable Operation: Equipped with strong magnets and springs, these valves are resistant to contamination and provide reliable performance. ​
• Compact and Lightweight: The optimized body design makes these valves compact and lightweight, simplifying installation and integration into systems with limited space.

Lihat produk ini di tokopedia! → Pergi ke tautan

Aplikasi:

The DSG-03-2B2-A240-50 valve is suitable for applications requiring precise control of hydraulic fluid direction, such as industrial machinery, automated equipment, and mobile hydraulic systems.

Spesifikasi:

• Valve Type: Solenoid Operated Directional Valve
• Model: DSG-03-2B2-A240-50
• Valve Size: 03 (3/8 inch)
• Number of Positions: 2
• Spool: B2 (Spring Offset)
• Solenoid Type: AC 240V
• Electrical Conduit Connection: Terminal Box Type
• Maximum Flow Rate: 100 L/min
• Max. Operating Pressure: 31.5 MPa
• Max. T-Line Back Pressure: 16 MPa
