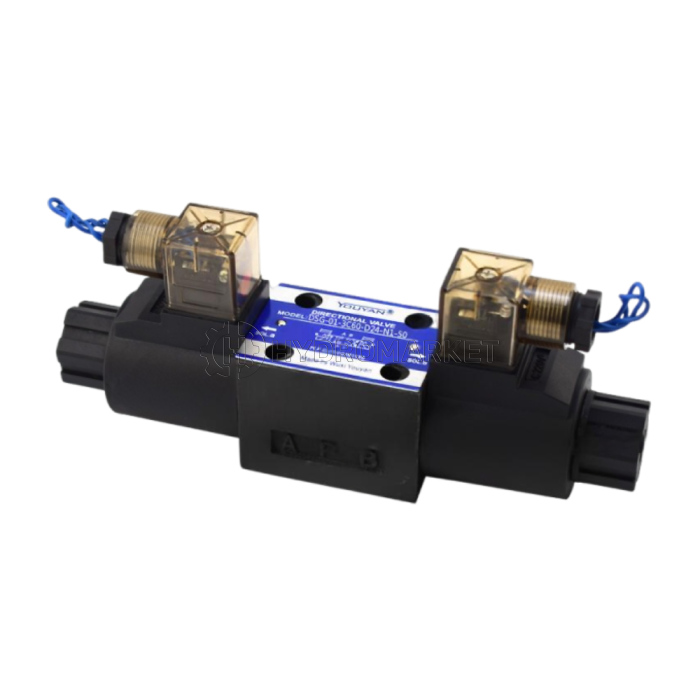

Solenoid Directional Valve DSG-01-3C10-A240-N1-50 AC 240V

DSG-01-3C10-A240-N1-50 is an electromagnetic directional control valve from DSG-01 series, designed to manage the flow direction of hydraulic fluids in various industrial applications.

Fitur Utama Solenoid Valve Seri DSG-01:

• High Pressure & High Flow Rate: Both the pressure and flow of these valves are significantly increased (Max. Operating Pressure: 31-35 MPa; Max. T-Line Back Pressure:16-21 MPa; Max. Flow: 63-100 L/min)
• Low Pressure Drop: The pressure drop of these valves is reduced to 0.9 MPa, effectively improving efficiency.
• Stable Operation: Due to the powerful magnetic and spring force of the solenoids, these valves exhibit a high tolerance to contaminants and especially stable operation.
• Compact & Small Mass: Despite of high pressure, high flow and low pressure drop, these valve bodies are compact and lightweight.
• IP65 Equivalent Protection: High dust and water resistance, suitable for various industrial applications.

Lihat produk ini di tokopedia! → Pergi ke tautan

Aplikasi:

The DSG-01-3C10-A240-N1-50 valve is suitable for applications requiring precise control of hydraulic fluid direction, such as industrial machinery, automated equipment, and mobile hydraulic systems.

Spesifikasi:

• Valve Type: Solenoid Operated Directional Valve
• Model: DSG-01-3C10-A240-N1-50
• Valve Size: 01 (6 mm)
• Number of Positions: 3
• Spool: C10 (Spring centered)
• Solenoid Type: AC 240V
• Connector Type: N1 (DIN Connector with Indicator Light)​
• Maximum Flow Rate: 100 L/min
• Max. Operating Pressure: 35 MPa
• Max. T-Line Back Pressure: 21 MPa
