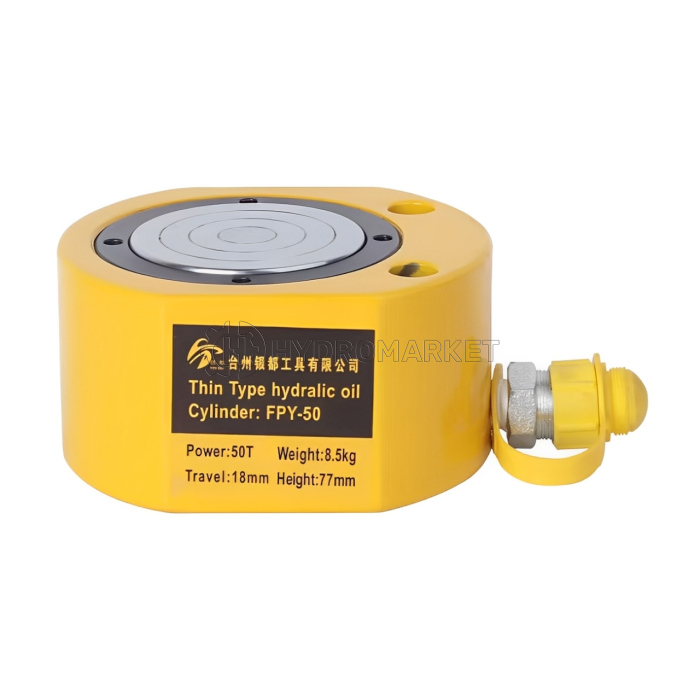

Silinder Hidrolik FPY-50 (50 Ton, stroke 18 mm) / Hydraulic Cylinder 50 Ton / Hydraulic Jack 50 Ton

High-Tonnage Hydraulic Cylinder 50 Ton FPY-50, Hydraulic Jack 50 Ton, (Dongkrak Hidrolik 50 Ton, Silinder Hidrolik Berkapasitas Tinggi 50 Ton FPY-50)

This hydraulic cylinder offering high tonnage capacity (50T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 18 mm stroke, 135.5 ml oil capacity. Compatible with CP-700 hand pump and ZCB-700A/D electric pumps.

Silinder Hidrolik ini menawarkan kapasitas tonase tinggi (50T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 18 mm, kapasitas oli 135.5 ml. Kompatibel dengan pompa tangan CP-700 dan pompa listrik ZCB-700A/D.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Silinder Hidrolik FPY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis:

• Model: FPY-50
• Tonnage (Cylinder Capacity): 50 T
• Effective Area: 75.3 cm2
• Outer Diameter: 140x130 mm
• Inner Diameter: 98 mm
• Travel (Stroke): 18 mm
• Collapsed Height: 77 mm
• Extended Height: 95 mm
• Plunger Diameter: 80 mm
• Oil Capacity: 135.5 ml
• Weight: 8.8 kg
• Recommended Hand Pump: CP-700
• Recommended Electric Pump: ZCB-700A, ZCB-700D


• Model: FPY-50
• Kapasitas Silinder: 50 T
• Area Efektif: 75.3 cm2
• Diameter Luar: 140x130 mm
• Diameter Dalam: 98 mm
• Stroke: 18 mm
• Tinggi Tertutup: 77 mm
• Tinggi Terbuka: 95 mm
• Diameter Plunger: 80 mm
• Kapasitas Oli: 135.5 ml
• Berat: 8.8 kg
• Pompa Manual yang Direkomendasikan: CP-700
• Pompa Elektrik yang Direkomendasikan: ZCB-700A, ZCB-700D
