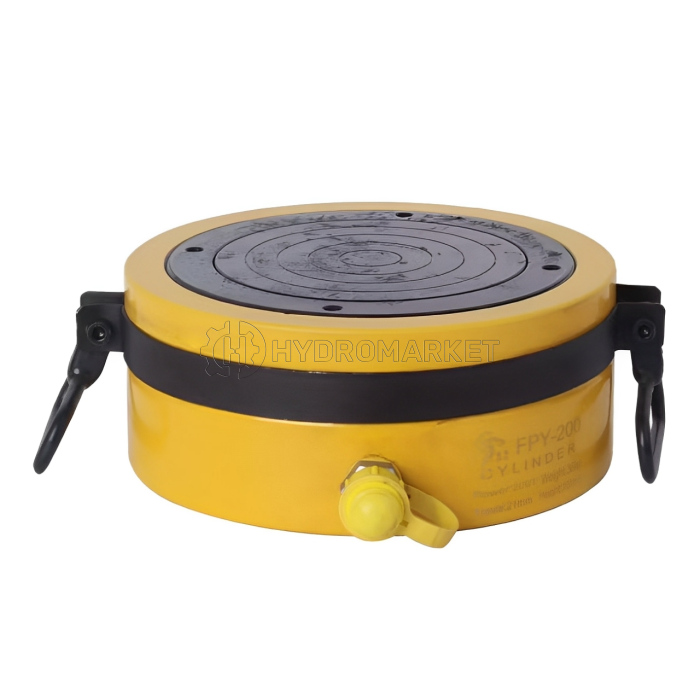

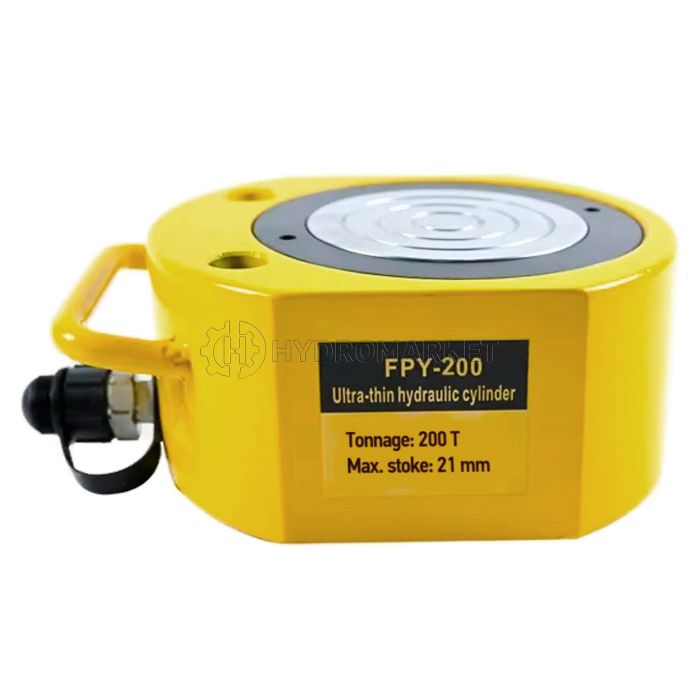

Silinder Hidrolik FPY-200 (200Ton, stroke 21mm) / Hydraulic Cylinder 200Ton / Hydraulic Jack 200Ton

High-Tonnage Hydraulic Cylinder 200 Ton FPY200, Hydraulic Jack 200 Ton, (Dongkrak Hidrolik 200 Ton, Silinder Hidrolik Berkapasitas Tinggi 200 Ton FPY-200)

This hydraulic cylinder offering high tonnage capacity (200T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 21 mm stroke, 635 ml oil capacity. Compatible with CP-700 hand pump and ZCB-700A/D electric pumps.

Silinder Hidrolik ini menawarkan kapasitas tonase tinggi (200T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 21 mm, kapasitas oli 635 ml. Kompatibel dengan pompa tangan CP-700 dan pompa listrik ZCB-700A/D.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Silinder Hidrolik FPY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis:

• Model: FPY-200
• Tonnage (Cylinder Capacity): 200 T
• Effective Area: 302.4 cm2
• Outer Diameter: Ф248 mm
• Inner Diameter: 166 mm
• Travel (Stroke): 21 mm
• Collapsed Height: 101 mm
• Extended Height: 122 mm
• Plunger Diameter: 158 mm
• Oil Capacity: 635 ml
• Weight: 35.90 kg
• Recommended Hand Pump: CP-700
• Recommended Electric Pump: ZCB-700A, ZCB-700D


• Model: FPY-200
• Kapasitas Silinder: 200 T
• Area Efektif: 302.4 cm2
• Diameter Luar: Ф248 mm
• Diameter Dalam: 166 mm
• Stroke: 21 mm
• Tinggi Tertutup: 101 mm
• Tinggi Terbuka: 122 mm
• Diameter Plunger: 158 mm
• Kapasitas Oli: 635 ml
• Berat: 35.90 kg
• Pompa Manual yang Direkomendasikan: CP-700
• Pompa Elektrik yang Direkomendasikan: ZCB-700A, ZCB-700D
