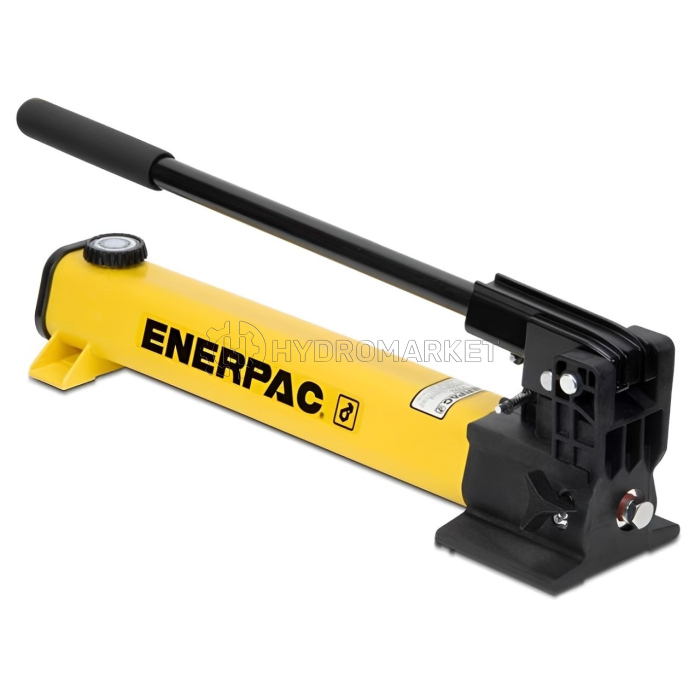

Manual Hydraulic Pump Enerpac P392 (900 cm3, Single-acting, Two Speed)

Enerpac P392 lightweight hydraulic hand pump (Pompa Manual Hidrolik) is compact and easy to carry.

Enerpac hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).

Lihat produk ini di tokopedia! → Pergi ke tautan

The durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base offers an unrivalled combination of strength, weight, and resistance to corrosion.

Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it’s needed most before the pump automatically switches to the low flow high-pressure stage.

Fitur Enerpac P392:

• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection

Spesifikasi Teknis Enerpac P392:

• Maximum Operating Pressure: 700 bar
• Pressure Rating 1st Stage: 13 bar
• Pressure Rating 2nd Stage: 700 bar
• Cylinder Compatibility: Single-acting
• Pump Type: Two Speed
• Reservoir Capacity: 901 cm³
• Usable Oil Capacity: 901 cm³
• Maximum Flow at Rated Pressure: 2.47 cm³/stroke
• Oil Displacement Per Stroke 1st Stage: 11.26 cm³
• Oil Displacement Per Stroke 2nd Stage: 2.47 cm³
• Maximum Handle Effort: 42.2 kg
• Piston Stroke: 25.4 mm
• Valve Operation: Manual
• Power Source: Manual
• Weight: 4.1 kg
