Hydraulic gear pump Hidroan dengan jenis badan cor ISO
Persediaan
Deskripsi / Hydraulic gear pump Hidroan dengan jenis badan cor ISO

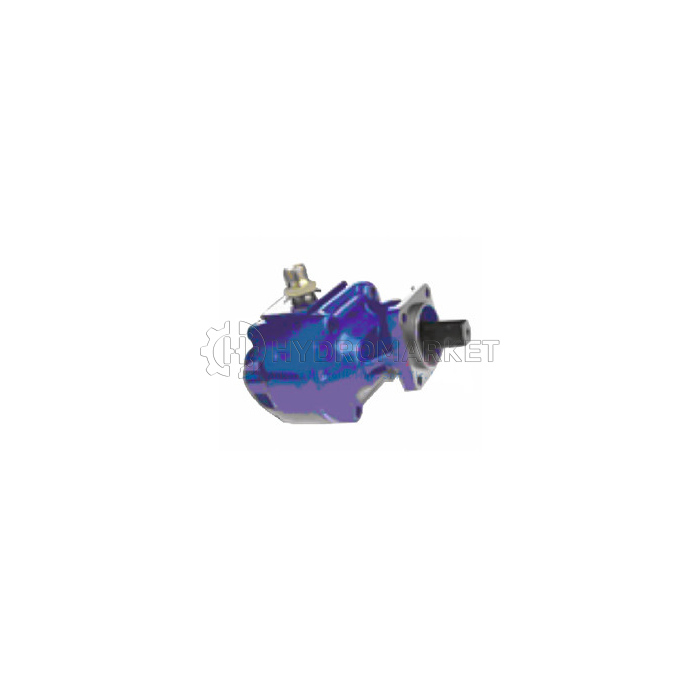

Front Flange ISO Casting Body Pumps Hidroan
Hydraulic gear pumps have gained widespread use in various industries due to several advantages over other types of pumps. The main advantages of such pumps are safety, compactness, system simplicity, and relatively high efficiency coefficient. In addition, gear pumps do not have working parts that are affected by centrifugal force, which allows them to be used at a rotational frequency of 20 s-1. Furthermore, gear pumps are capable of generating high pressure, transferring viscous and hot substances, and changing the direction of liquid transfer.
| Product Code | Flow (cubic cm/dev) | Operating Pressure (continuous) | Operating Pressure (peak) | Max Speed (rpm) |
|---|---|---|---|---|
| ISO 73 | 73 | 290 | 450 | 3800 |
| ISO 84 | 84 | 270 | 375 | 3500 |
| ISO 100 | 100 | 260 | 375 | 3000 |
| ISO 116 | 116 | 250 | 340 | 3000 |
| ISO 132 | 100 | 230 | 315 | 3000 |
| ISO 148 | 116 | 190 | 270 | 3000 |
High-quality hydraulic pumps, have passed quality control and have corresponding certificates.
When ordering goods from us - discount for installation at our service center.
12 months quality warranty!
Please check availability with the manager!
Informasi Lebih Lanjut
| Jenis koneksi | ISO |
|---|---|
| Negara | Baru |
| Masa garansi, bulan | 12 |
| Negara Asal | Türkiye |
| Merek | Hidroan |
