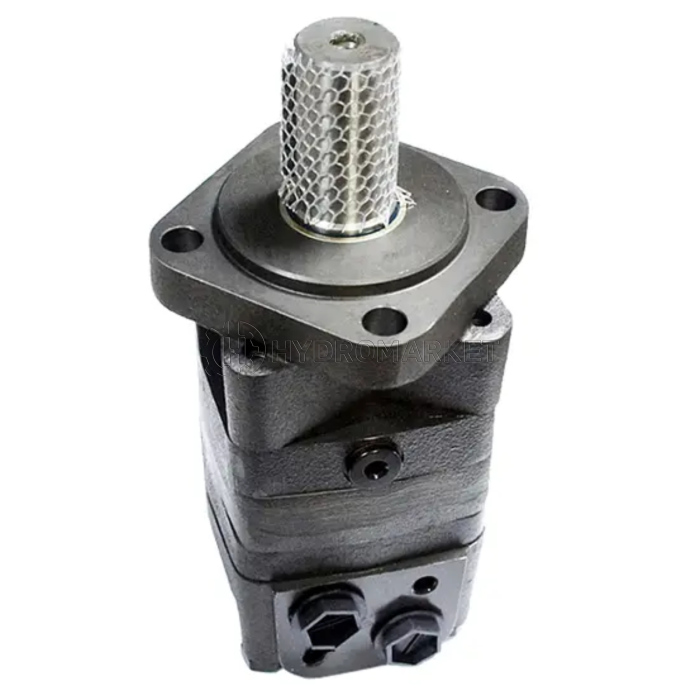

Orbital Motor hydrolik BMK2-125-E4-G-DB - M4 as/shaft 31,75mm OLEO
OLEO MOTOR
Main image
Click to view image in fullscreen
![]()
Karakteristik motor hidrolik orbital
Produk
BMK2-125-E4-G-DB
Bentuk Body
Seri 2000 Charlyn-Eaton
Volumetric Displacement
125cc
Max Speed
600 rpm
Max Torsi
490 Nm
Max Output
14,5KW / 18,4HP
Max Pressure Continue
210 bar
Max Flow
75 - 90 Liter PerMenit
Port/Lobang Drat
1/2 - BSP
Shaft/As
31,75 mm (1-1/4 inch) - SPL
Dimensi SPI (Key)
7,96mm x 7,96mm x 31,75 mm
Nok/Hap/Spigot Diameter
82,5 mm
Bolt Circle Diameter
106,4 mm
Persediaan
SKU
m_100065694
Deskripsi / Orbital Motor hydrolik BMK2-125-E4-G-DB - M4 as/shaft 31,75mm OLEO
Karakteristik motor hidrolik orbital
| Produk | BMK2-125-E4-G-DB |
|---|---|
| Bentuk Body | Seri 2000 Charlyn-Eaton |
| Volumetric Displacement | 125cc |
| Max Speed | 600 rpm |
| Max Torsi | 490 Nm |
| Max Output | 14,5KW / 18,4HP |
| Max Pressure Continue | 210 bar |
| Max Flow | 75 - 90 Liter PerMenit |
| Port/Lobang Drat | 1/2 - BSP |
| Shaft/As | 31,75 mm (1-1/4 inch) - SPL |
| Dimensi SPI (Key) | 7,96mm x 7,96mm x 31,75 mm |
| Nok/Hap/Spigot Diameter | 82,5 mm |
| Bolt Circle Diameter | 106,4 mm |
Informasi Lebih Lanjut
| Negara | Baru |
|---|---|
| Masa garansi, bulan | 12 |
| Merek | Oleo Motor |
| Negara Asal | Cina |
