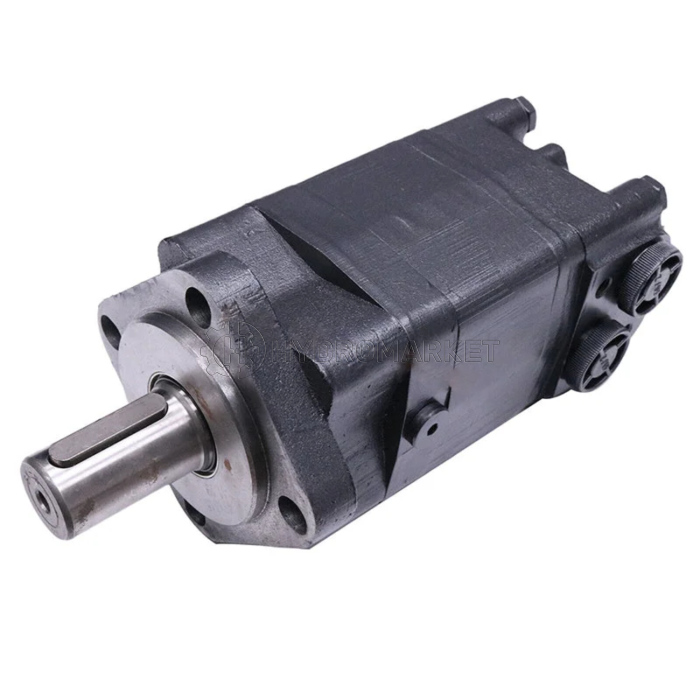

Orbital motor hydraulic OMS 400 shaft 32mm 151F0605 Danfoss
DANFOSS
Main image
Click to view image in fullscreen
![]()
Karakteristik motor hidrolik orbital
Produk
OMS 400
Part Number
151F0605
Geometric Displacement
400cc
Max Speed
*190 - **230 rpm
Max Torsi
*865 - **990 Nm
Max Output
*11 - **12,5 KW
Max Inlet Pressure
*210 - **250 bar
Max Pressure Drop
*160 - **190 - ***210 bar
Max Oil Flow
*75 - **90 LPM
Port/Drat A-B
G - 1/2
Port Drain
G - 1/4
Shaft/As
32mm - SPI
Lebar SPI
10mm
Nok/Hub/Pilot/Spigot Diameter
82,5 mm
Bolt Circle Diameter
106,8 mm
Persediaan
SKU
m_100065696
Deskripsi / Orbital motor hydraulic OMS 400 shaft 32mm 151F0605 Danfoss
Karakteristik motor hidrolik orbital
| Produk | OMS 400 |
|---|---|
| Part Number | 151F0605 |
| Geometric Displacement | 400cc |
| Max Speed | *190 - **230 rpm |
| Max Torsi | *865 - **990 Nm |
| Max Output | *11 - **12,5 KW |
| Max Inlet Pressure | *210 - **250 bar |
| Max Pressure Drop | *160 - **190 - ***210 bar |
| Max Oil Flow | *75 - **90 LPM |
| Port/Drat A-B | G - 1/2 |
| Port Drain | G - 1/4 |
| Shaft/As | 32mm - SPI |
| Lebar SPI | 10mm |
| Nok/Hub/Pilot/Spigot Diameter | 82,5 mm |
| Bolt Circle Diameter | 106,8 mm |
Informasi Lebih Lanjut
| Negara | Baru |
|---|---|
| Masa garansi, bulan | 12 |
| Merek | Danfoss |
| Negara Asal | Polandia |
