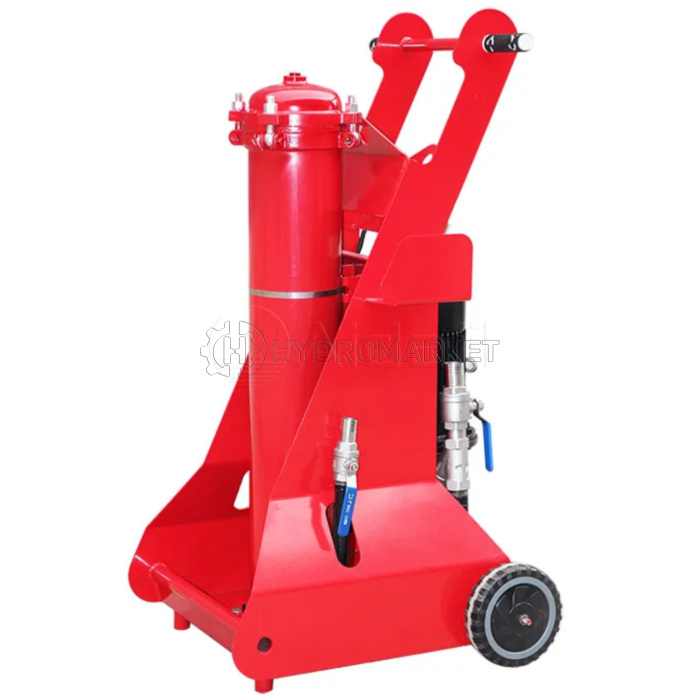

Mobile Transformer Oil Purification Unit – OF7 Series (Model: FCM-100-FN-3B10-B)

Cleaning of transformer oil using a vacuum filter, portable and mobile oil cleaner FCM-100-FN-3B10-B

The OF7 Series Oil Filtration Equipment, model FCM-100-FN-3B10-B, is a professional-grade mobile oil purifier engineered for the filtration and refilling of transformer oil, hydraulic oil, turbine oil, lubricating oil, diesel fuel, and motor oil. Ideal for industrial applications, this unit ensures clean and safe oil circulation in your system, helping extend the service life of the equipment and oil.

Key Features:

• Max. Operating Pressure: 0.6 MPa
• Flow Rate: 100 L/min
• Viscosity Range: ≤160 mm²/s (at 20℃)
• Filtration Precision: 10 microns
• Power: 1.1 kW, 380V, 3-phase, 50 Hz
• Max. Working Temperature: ≤1000°C
• Unit Dimensions: 680 × 530 × 960 mm

Equipped with a low-noise gear pump and high self-priming capability, the system operates smoothly and reliably. The high-pressure pipeline integrates an overflow protection valve to safeguard the hydraulic system.

Protective & Monitoring Features:

• Thermal relay to prevent motor overload
• Pre-filter on the suction side to protect the main pump and extend fine filter life
• Multiple filter grades available (3, 5, 10, 20, 30, 40, 50 microns)
• Quick-lock housing design for tool-free filter element replacement
• Built-in pressure gauge for real-time monitoring of contamination and system performance

Advantages for Industrial Use:

• Highly efficient purification for both new and used oils
• Mobile cart design allows flexible operation and easy relocation
• CE certified for safety and compliance
• Compact build with robust construction
• Tested and proven by numerous industrial clients
