Mini-excavator Rippa R13

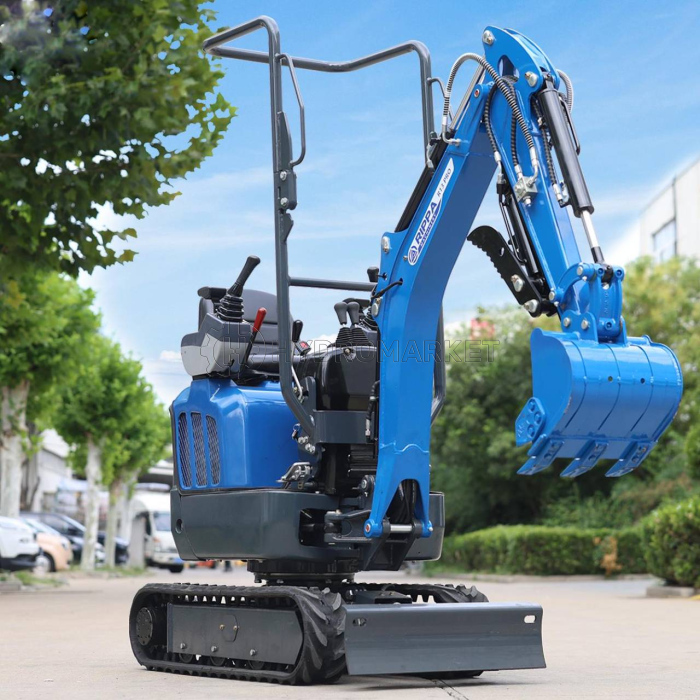

Mini Excavator Rippa R13

Rippa R13 is a powerful and versatile mini excavator equipped with a reliable Kubota D722 diesel engine, designed for efficient operation in confined spaces. Thanks to its telescopic chassis (750–990 mm), wide boom swing capability, and dual travel speed, this model combines compactness, maneuverability, and performance—ideal for professional use.

Key Features:

• Engine: Reliable three-cylinder Kubota D722 with 10.2 kW (13.7 hp)
• Telescopic Chassis: Adjustable width from 750 to 990 mm—perfect for narrow passageways
• Wide Boom Swing Angle: Up to 105°—for convenient operation along walls and obstacles
• Dual Travel Speed: For efficient movement around the job site

Technical Specifications:

• Operating Weight: 1300 kg / 2866 lbs
• Bucket Capacity: 0.03 m³ / 1.1 ft³
• Maximum Digging Radius: 3346 mm / 131.7 in
• Maximum Digging Depth: 1843 mm / 72.6 in
• Maximum Digging Height: 3011 mm / 118.6 in
• Maximum Dumping Height: 2238 mm / 88.1 in
• Maximum Boom Swing Angle: 105°
• Track Width Range: 750–990 mm / 29.5–39 in

Dimensions:

• Length: 2114 mm / 83.2 in
• Width: 750 mm / 29.5 in
• Height: 2289 mm / 90.1 in
