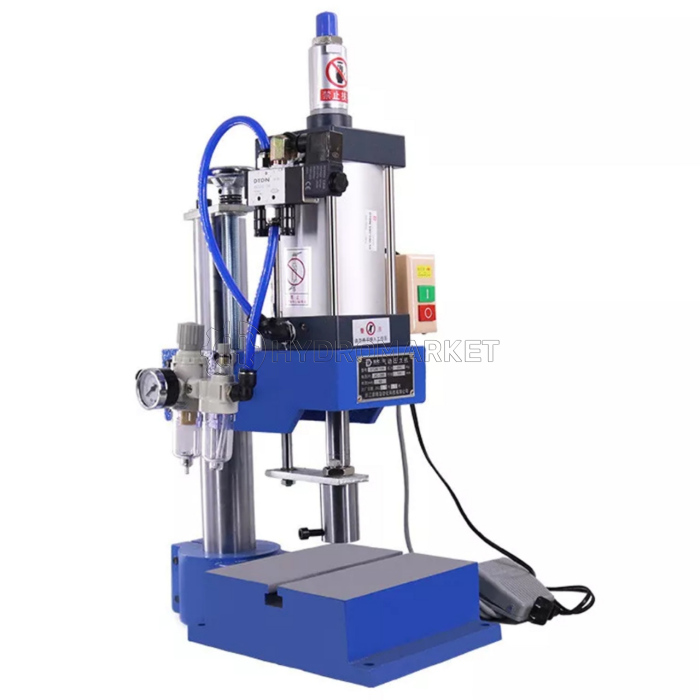

Mesin Punch Pneumatik 200kg DTDN-63 – Mesin Press Kecil Satu Kolom untuk Bengkel & Industri

Mesin Punch Pneumatik 200kg DTDN-63 – Mesin Press Kecil Satu Kolom untuk Bengkel & Industri

Configuration: Standard

Operates via foot pedal. Pressing the pedal moves the pneumatic cylinder downward, and releasing it returns the cylinder to its original position. Suitable for small-scale processing with single operations.

Fitur Utama Pneumatic Punching Machine:

• Uses compressed air as a power source, providing high efficiency and easy operation. Reduces labor force and is suitable for manual operation and automated production lines.
• Simple structure, easy operation, low cost, and excellent performance. No noise from oil systems or electric motors, saving energy and reducing production costs, making it highly cost-effective.
• Easy to adjust — simply modify the air pressure to achieve the desired force. Equipped with mechanical guide rods and blocks for high precision, making it suitable for precision stamping. Adjustable in height, speed, stroke, pressure, and stamping time to accommodate different products and molds.
• Uses a microcomputer control system with manual, semi-automatic, and fully automatic operation options. Additional control devices can also be added.
• Suitable for electronics, instruments, meters, cameras, metal parts, clothing, and footwear industries.
• Can perform cutting, punching, blanking, forming, bending, and riveting on thin plates, strips, and coils.
• Suitable for processing non-ferrous metals and plastic parts.
• Provides quantity statistics for the production process.
• Voltage: AC220V input / DC24V output.
• Housing: Made of high-strength single-material injection molding, aesthetically pleasing, sturdy, and durable.

Spesifikasi Teknis Mesin Press Pneumatik:

• Model: 63 Standard Configuration
• Cylinder Specifications: 63-75-50
• Worktable Size: 150×135mm
• Working Height: 200mm
• Punch Head Inner Hole: 16mm
• Column Diameter: 30mm
• Total Column Length: 350mm
• Throat Depth: 80mm
• T-slot: M12
• Air Inlet Pipe: 8×5mm
• Total Machine Weight: 16kg
• Control Method: Pneumatic/Electric
