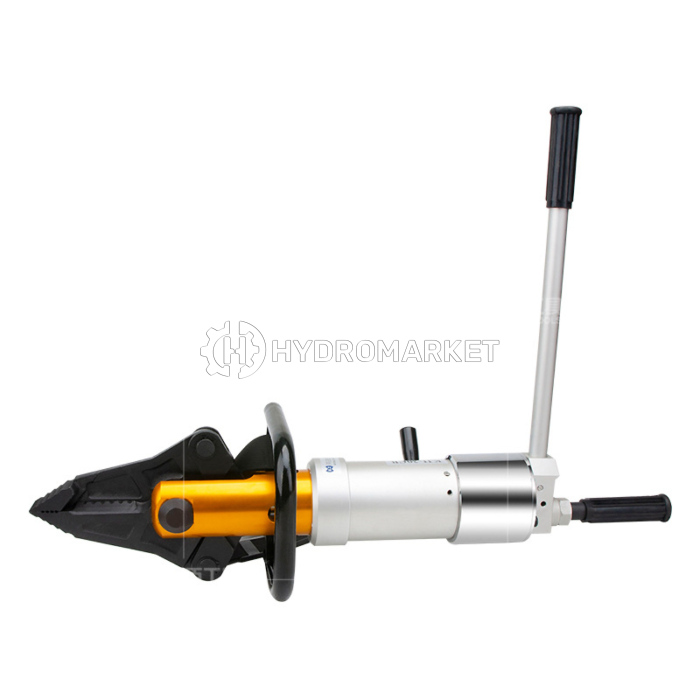

Manual Cutter Spreader KJI-20CB / Clamp Combi Tool

The KJI-20CB Universal Rotary Hydraulic Manual Cutter Spreader is a portable, high-quality emergency rescue tool designed for versatility and efficiency. Combining cutting, spreading, and clamping functions, it operates without an external power source, using an integrated manual pump with automatic pressure conversion. The tool's durable regrindable steel knives can handle a variety of tasks, such as cutting metal structures, vehicle components, and pipes, as well as prying doors and deforming metal. With a maximum opening distance of 160mm, a shearing force of 18T, and a lightweight design (15kg), it is ideal for traffic accident and disaster rescue operations. The 360° rotatable design ensures flexibility in tight or challenging environments, making it a reliable choice for emergency and mobile rescue scenarios.

Lihat produk ini di tokopedia! → Pergi ke tautan

KJI-20CB Universal Rotary Hydraulic Manual Cutter Spreader (Penjepit Geser Hidrolik) adalah alat penyelamatan darurat portabel berkualitas tinggi yang dirancang untuk fleksibilitas dan efisiensi. Menggabungkan fungsi memotong, melebarkan, dan menjepit, alat ini beroperasi tanpa sumber daya eksternal, menggunakan pompa manual terintegrasi dengan konversi tekanan otomatis. Pisau baja alat yang tahan lama dan dapat diasah ulang dapat menangani berbagai tugas, seperti memotong struktur logam, komponen kendaraan, dan pipa, serta mencongkel pintu dan mendistorsi logam. Dengan jarak pembukaan maksimum 160mm, gaya geser 18T, dan desain ringan (15kg), alat ini ideal untuk operasi penyelamatan kecelakaan lalu lintas dan bencana. Desain yang dapat diputar 360° memastikan fleksibilitas di lingkungan yang sempit atau menantang, menjadikannya pilihan andal untuk skenario penyelamatan darurat dan bergerak.

Technical Parameters:

• Maximum opening distance: ≤160mm
• Rated working pressure: 63MPa
• Maximum shear (Q235 material): 10mm (steel plate), 20mm (round steel)
• Shearing force: 18T
• Stretching: 5.5T
• Expansion distance: 160mm
• Rated expansion force: ≤24KN
• No-load opening and pressing times: ≤9 times
• No-load closing and pressing times: ≤11 times
• Handle force: ≤300N
• Gross weight: about 15Kg
• Dimensions: L750 × W230 × H490mm (including handle size)

Product Features:

• The tool is integrated with the manual pump, no external power source is required, and the high and low pressure are automatically converted.
• The shearing knife and the manual pump can be rotated 360° with each other, which is suitable for different occasions and orientations.
• The knives are made of regrindable tool steel, which can be cut, expanded, and clamped.
• Lightweight and easy to carry.

Application Range:

• Traffic accident rescue, earthquake, and other disaster rescue.
• Suitable for mobile rescue operations.
• Pry doors and deform metal structures.
• Cutting metal structures, vehicle components, pipes, and sheet metal.
