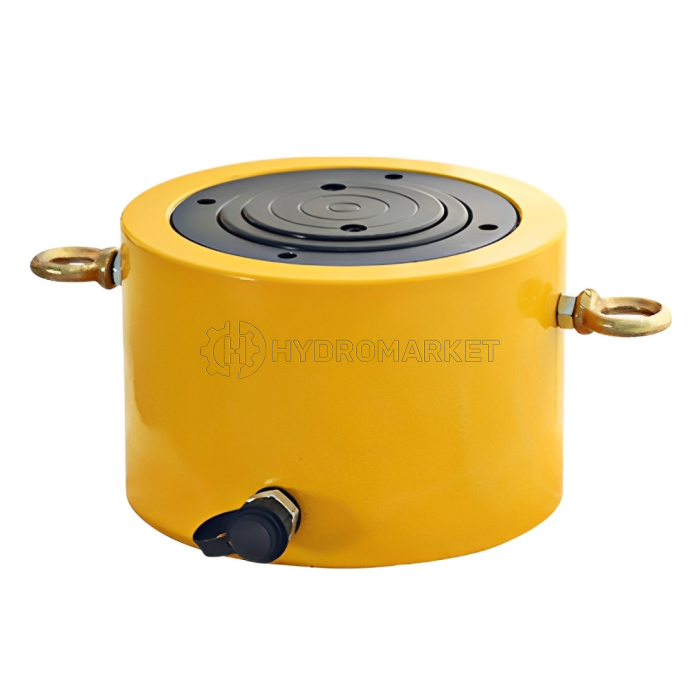

Low Hydraulic Cylinder RSC-20050 (200Ton, Stroke 50mm) / Hydraulic Jack Silinder Hidrolik 200Ton

High-Tonnage Hydraulic Cylinder Low Height 200 Ton RSC-20050, Hydraulic Jack 200 Ton /// Dongkrak Hidrolik 200 Ton, Silinder Hidrolik 200 Ton RSC-20050 Single Acting

• Model RSC-20050 adalah silinder hidrolik single acting dengan kapasitas 200 ton pada tekanan 700 bar, yang dirancang untuk digunakan dalam berbagai aplikasi industri berat. Dengan desain yang ringkas namun tangguh, silinder ini ideal untuk digunakan dalam kondisi ruang terbatas dan aplikasi presisi.
• Kapasitas Besar: Mampu menangani beban hingga 200 ton, memberikan daya yang kuat dalam aplikasi berat.

Stroke Panjang: Stroke sepanjang 50 mm memungkinkan rentang gerak yang lebih besar dalam berbagai tugas hidrolik.

• High Tonnage Capacity: The RSC-20050 single-acting hydraulic cylinder jack features an impressive 100-ton output, making it ideal for heavy-duty applications and meeting the demands of industrial users.
• Compact Design: With a collapsed height of 158 mm, this hydraulic cylinder is specifically designed for space-constrained environments, making it perfect for users who require a compact lifting solution.
  Time and Energy Saving: With it, you can lift heavy objects more easily, reducing the risk of manual labor, improving the safety of use, and enhancing efficiency
  • Reliable Performance: Certified to ISO 9001:2008, this product ensures a high level of quality and reliability, providing customers with peace of mind in their purchase.
  • Application: It is suitable for electric power, the chemical industry, mining, railroad, rescue, steel, bridge, machinery, and other industries. It is a good helper for starters, processors, welders, auto body, and frame workshops.

Lihat produk ini di tokopedia! → Pergi ke tautan

Spesifikasi Teknis Silinder Hidrolik RSC-20050:

• Lifting Capacity: 200 tons
• Height: 158 mm
• Stroke: 50 mm
• Outer Diameter: 242 mm
• Inner Diameter: 185 mm
• Weight: 48.0 kg
• Effective Area: 302.5 cm²
• Compatible Hydraulic Pump: CP-700-2


• Kapasitas Silinder: 200 ton
• Tinggi: 158 mm
• Stroke: 50 mm
• Diameter Luar: 242 mm
• Diameter Dalam: 185 mm
• Berat: 48.0 kg
• Area Efektif: 302.5 cm²
• Pompa Hidrolik yang Kompatibel: CP-700-2
