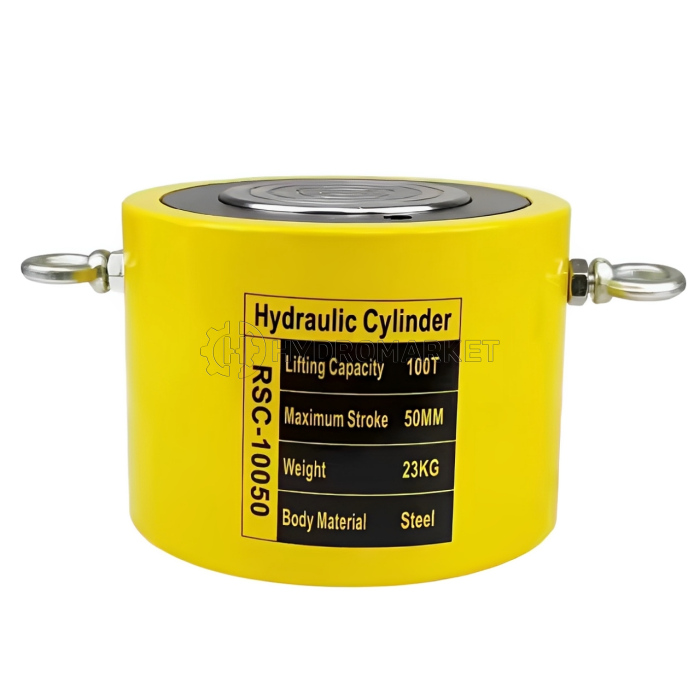

Low Hydraulic Cylinder RSC-10050 (100Ton, Stroke 50mm) / Hydraulic Jack Silinder Hidrolik 100Ton

High-Tonnage Hydraulic Cylinder Low Height 100 Ton RSC-10050, Hydraulic Jack 100 Ton /// Dongkrak Hidrolik 100 Ton, Silinder Hidrolik 100 Ton RSC-10050 Single Acting

• Model RSC-10050 adalah silinder hidrolik single acting dengan kapasitas 100 ton pada tekanan 700 bar, yang dirancang untuk digunakan dalam berbagai aplikasi industri berat. Dengan desain yang ringkas namun tangguh, silinder ini ideal untuk digunakan dalam kondisi ruang terbatas dan aplikasi presisi.
• Kapasitas Besar: Mampu menangani beban hingga 100 ton, memberikan daya yang kuat dalam aplikasi berat.

Stroke Panjang: Stroke sepanjang 50 mm memungkinkan rentang gerak yang lebih besar dalam berbagai tugas hidrolik.

• High Tonnage Capacity: The RSC-10050 single-acting hydraulic cylinder jack features an impressive 100-ton output, making it ideal for heavy-duty applications and meeting the demands of industrial users.
• Compact Design: With a collapsed height of 120 mm, this hydraulic cylinder is specifically designed for space-constrained environments, making it perfect for users who require a compact lifting solution.
• Time and Energy Saving: With it, you can lift heavy objects more easily, reducing the risk of manual labor, improving the safety of use, and enhancing efficiency
• Reliable Performance: Certified to ISO 9001:2008, this product ensures a high level of quality and reliability, providing customers with peace of mind in their purchase.
• Application: It is suitable for electric power, the chemical industry, mining, railroad, rescue, steel, bridge, machinery, and other industries. It is a good helper for starters, processors, welders, auto body, and frame workshops.

Lihat produk ini di tokopedia! → Pergi ke tautan

Spesifikasi Teknis Silinder Hidrolik RSC-10050:

• Lifting Capacity: 100 tons
• Height: 120 mm
• Stroke: 50 mm
• Outer Diameter: 170 mm
• Inner Diameter: 135 mm
• Weight: 23.0 kg
• Effective Area: 143.06 cm²
• Compatible Hydraulic Pump: CP-700


• Kapasitas Silinder: 100 ton
• Tinggi: 120 mm
• Stroke: 50 mm
• Diameter Luar: 170 mm
• Diameter Dalam: 135 mm
• Berat: 23.0 kg
• Area Efektif: 143.06 cm²
• Pompa Hidrolik yang Kompatibel: CP-700
