Large Induction Bearing Heater 400-460V 250°C / Induction Heater SKF TIH 220M/MV
Persediaan
Deskripsi / Large Induction Bearing Heater 400-460V 250°C / Induction Heater SKF TIH 220M/MV

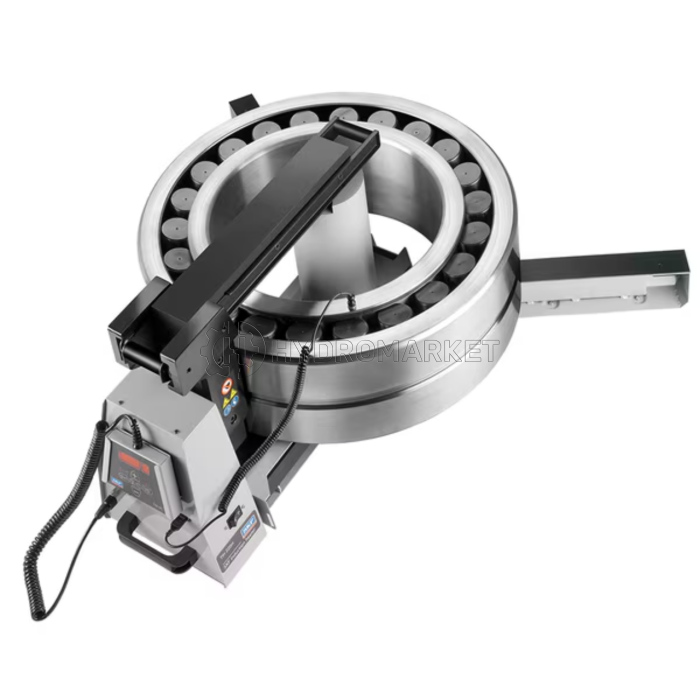

Large Induction Bearing Heater 400-460V 250°C — SKF TIH 220M/MV
HEATER INDUKSI BERKAPASITAS BESAR UNTUK INDUSTRI
KAPASITAS PEMANASAN TINGGI
Heater induksi TIH 220M/MV mampu memanaskan bearing hingga 300 kg dan komponen solid hingga 150 kg. Koil induksi eksternal memungkinkan pemanasan merata, efisien, dan cepat, mengurangi konsumsi energi.
DESAIN AMAN & USER-FRIENDLY
Unit dilengkapi sliding arm, LED display di remote control, Temperature & Time Mode, proteksi overheating, dan demagnetisasi otomatis. Pre-set suhu 110 °C (230 °F) untuk mencegah overheating bearing.
PORTABILITAS & STABILITAS
Bobot total 86 kg dengan foldable support arm, cocok untuk workshop, industri besar, dan maintenance lapangan.
APLIKASI UMUM
Ideal untuk pemeliharaan gearbox industri besar, pompa, motor listrik, fan & blower, serta pemasangan bearing dan komponen logam berbobot tinggi.
SPESIFIKASI TEKNIS
- Model: TIH 220M/MV
- Tegangan: 400–460 V, 50/60 Hz
- Daya Maks.: 10.0–11.5 kVA
- Berat Bearing Maks.: 300 kg
- Diameter Bore: 60–600 mm
- Kontrol Suhu: 0–250 °C (±2 °C)
- Kontrol Waktu: 0–60 menit (±0.01 s)
- Performance Example: 220 kg bearing → 110 °C dalam 20 min
- Diameter Koil: 140 mm
- Area Kerja: 250 × 255 mm
- Core Cross Section: 70 × 70 mm
- Dimensi: 750 × 290 × 440 mm
- Demagnetisasi: otomatis
- Cooling Fan: No
- Panel Kontrol: Remote + LED Display
PAKET TERMASUK
- 1 x Large Induction Heater TIH 220M/MV
- 2 x Standard Yokes (70×70 & 40×40 × 430 mm)
- Foldable Bearing Support Arms
- Temperature Probe P20 (K-Type)
- Remote Control with LED Display
- Overheat Protection System
SPARE PART TERSEDIA
- TIH 220-Y6 / TIH 220-Y10 — Standard Yokes
- TIH 220-RS — Roller Support
- TIH 220-SLDR — Sliding Rails
- TIH 220-PMV — Power Print 400-460V
- Control Print, Remote Control
- TIH CB25A — Circuit Breaker 25A
- TIH P20 — Temperature Probe K-Type
- TIH SNUBBER — Snubber Board
- LGAF 3E/0.035 — Anti-Fretting Paste 35 g
Informasi Lebih Lanjut
| Negara | Baru |
|---|---|
| Masa garansi, bulan | 12 |
| Negara Asal | Cina |
| Merek | SKF |
