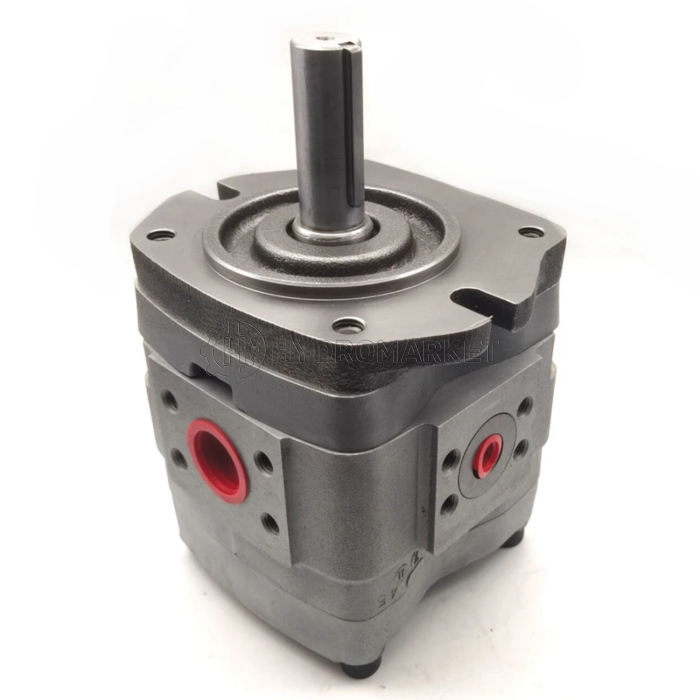

Internal Gear Pump IPH-4B-25-20 kapasitas 25cc merk Nachi
Main image
Click to view image in fullscreen
![]()
Karakteristik pompa roda gigi hidrolik
Nama Produk
IPH-4B-25-20
Ukuran Body Pompa
Seri 4B/putaran kanan
Kapasitas Displacement (cc)
25cc
Maksimal Pressure
300bar
Speed Minimum
500 Rpm
Speed Maximum
2000 Rpm
Diameter As/Shaft
25,4mm (1 inchi) straight keyed
Ukuran Key/SPI
6,3mm x 60mm
In/Suction Port
Flange SAEJ518b - "1-1/4"
Out/Discharge Port
Flange SAEJ518b - "3/4"
Jarak Rentang Baut Mounting
146mm
Hap/Spigot Diameter
101,6mm
Persediaan
SKU
m_100065707
Deskripsi / Internal Gear Pump IPH-4B-25-20 kapasitas 25cc merk Nachi
Karakteristik pompa roda gigi hidrolik
| Nama Produk | IPH-4B-25-20 |
|---|---|
| Ukuran Body Pompa | Seri 4B/putaran kanan |
| Kapasitas Displacement (cc) | 25cc |
| Maksimal Pressure | 300bar |
| Speed Minimum | 500 Rpm |
| Speed Maximum | 2000 Rpm |
| Diameter As/Shaft | 25,4mm (1 inchi) straight keyed |
| Ukuran Key/SPI | 6,3mm x 60mm |
| In/Suction Port | Flange SAEJ518b - "1-1/4" |
| Out/Discharge Port | Flange SAEJ518b - "3/4" |
| Jarak Rentang Baut Mounting | 146mm |
| Hap/Spigot Diameter | 101,6mm |
Informasi Lebih Lanjut
| Negara | Baru |
|---|---|
| Masa garansi, bulan | 12 |
| Negara Asal | Jepang |
| Merek | Nachi Fujikoshi |
