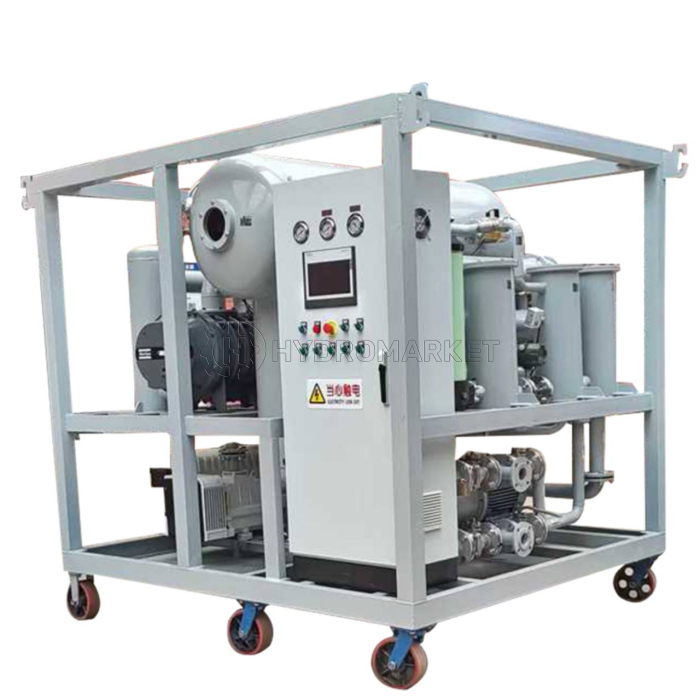

Hzly-50A 3000L/H Transformer Oil Filter

Hzly-50A 3000L/H Transformer Oil Filter

The Hzly-50A 3000L/H Transformer Oil Filter is a highly efficient piece of equipment designed to filter impurities and contaminants within transformer oil, ensuring its normal operation and longevity. This device offers several advantages, making it highly popular in the market.

Technical Specifications:

• Rated Flow Rate: 3000 L/h
• Effective Oil Throughput: 50 L/min
• Pumping Speed: 252 m³/h
• Working Pressure: ≤ 0.4 MPa
• Operating Oil Temperature: 40–70°C
• Power Supply: 380V, 50Hz, 3-phase, 3-wire
• Heating Power: 30 kW (adjustable)
• Total Power: 36 kW
• Operating Noise: ≤ 75 dB(A)
• Inlet/Outlet Diameter: 32 / 32 mm
• Dimensions (L × W × H): 150 × 125 × 145 cm
• Equipment Weight: 460 kg

Firstly, the Hzly-50A employs advanced fine filtration technology capable of removing tiny particles and sediments, resulting in excellent purification performance. Secondly, the equipment boasts stable operation, high efficiency, safety, and reliability. It is also very convenient for transformer maintenance, cleaning, and other operational tasks, helping to save time and reduce labor costs.

Additionally, the Hzly-50A features superior processing techniques and high-quality materials that ensure long service life and durability, meeting the demands of continuous long-term operation. At the same time, the equipment consumes low energy and produces minimal noise, reflecting environmentally friendly design and energy-saving benefits.

In summary, the Hzly-50A 3000L/H transformer oil filter is an outstanding solution in terms of performance, quality, stability, environmental protection, and energy conservation. It can significantly enhance transformer operational efficiency and provide enterprises with a more reliable and effective production guarantee.
