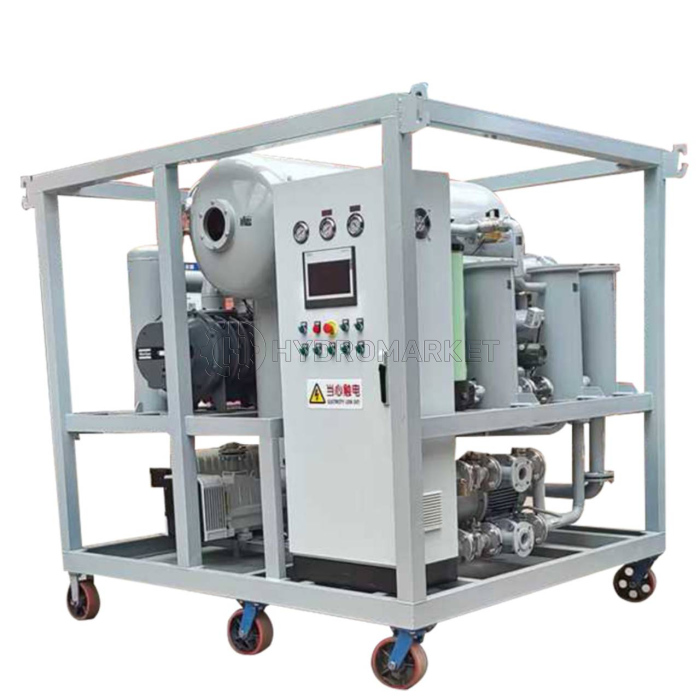

Hzly-300 Double Transformer Oil Filtration Unit
Main image
Click to view image in fullscreen
![]()
Hzly-300 Double Transformer Oil Filtration Unit
Persediaan
SKU
m_10013297
Deskripsi / Hzly-300 Double Transformer Oil Filtration Unit
Hzly-300 Double Transformer Oil Filtration Unit
The Hzly-300 Double Transformer Oil Filtration Unit is a high-capacity, efficient system designed to purify transformer oil by removing moisture, gases, and impurities. It ensures the oil maintains its dielectric strength and quality, thereby enhancing the safe and reliable operation of transformers in industrial settings.
Technical Specifications
- Rated Flow Rate: 18,000 L/h
- Effective Oil Throughput: 300 L/min
- Pumping Speed: 2,160 m³/h
- Working Pressure: ≤ 0.4 MPa
- Operating Oil Temperature: 40–70°C
- Power Supply: 380V, 50Hz, 3-phase, 3-wire
- Heating Power: 192 kW (adjustable)
- Total Power: 209 kW
- Operating Noise: ≤ 75 dB(A)
Informasi Lebih Lanjut
| Negara | Baru |
|---|---|
| Masa garansi, bulan | 12 |
| Negara Asal | Cina |
| Merek | Huazheng |
