Hzly-20A 1200L/H Used Insulating Oil Purification Unit

Hzly-20A 1200L/H Used Insulating Oil Purification Unit

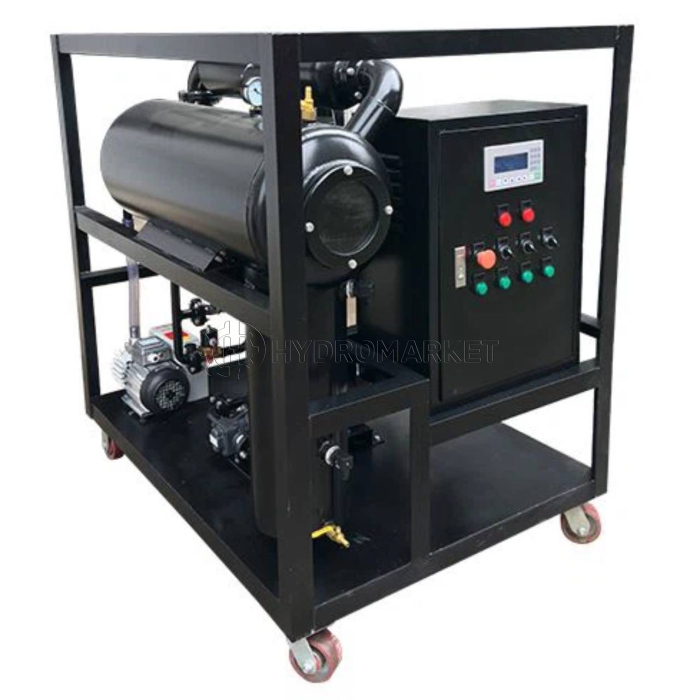

The Hzly-20A is designed to remove free and dissolved water, gases, and mechanical impurities from insulating oil to ensure its purity and improve its insulating properties.

Technical Specifications

• Model: Hzly-20A
• Rated Flow Rate: 1200 L/h
• Effective Oil Throughput: 20 L/min
• Pumping Speed: 21 m³/h
• Working Pressure: ≤ 0.4 MPa
• Operating Oil Temperature: 40–70°C
• Power Supply: 380V, 50Hz, 3-phase, 3-wire
• Heating Power: 15 kW (independently controlled in two groups)
• Total Power: 17 kW
• Operating Noise: ≤ 75 dB(A)
• Inlet/Outlet Diameter: 32/32 mm
• Dimensions (L × W × H): 125 × 85 × 130 cm
• Equipment Weight: 320 kg

Key Functions of Transformer Oil

1. Heat Dissipation:
   Transformer oil has a high specific heat capacity and is often used as a coolant. Heat generated during transformer operation causes the oil near the iron core and windings to expand and rise due to heat, circulating through upper and lower convection.
2. Arc Suppression:
   In oil circuit breakers and on-load tap changers, arcs form when contacts switch. Transformer oil's good thermal conductivity and ability to generate high pressure gas under high-temperature arcs improve arc extinction by rapidly quenching and expelling the arc.

This oil filtration equipment is suitable for cleaning transformer oil used in power transmission and transformation equipment above 110/220/500 kV. It effectively removes moisture, gases, and mechanical impurities, thus improving the oil’s dielectric strength and quality to ensure reliable electrical equipment performance.
