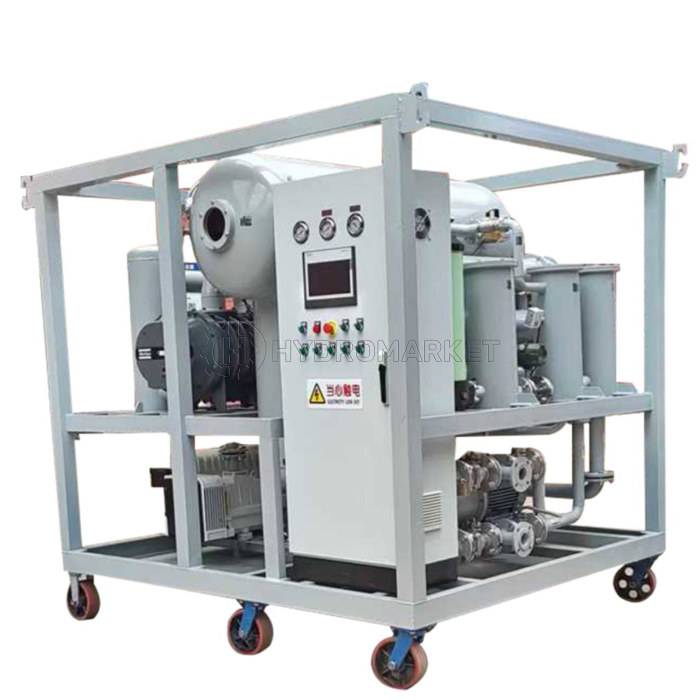

Hzly-200 Multi-Stage Vacuum Transformer Oil Filtration System (12000 L/h)

Hzly-200 Multi-Stage Vacuum Transformer Oil Filtration System (12000 L/h)

The Hzly-200 is a high-performance, multi-stage vacuum oil purification unit designed for the treatment of insulating oils used in power transformers and high-voltage electrical equipment. Engineered for large-scale industrial applications, this system effectively removes moisture, gases, and mechanical impurities from transformer oil, thereby restoring its dielectric strength and prolonging equipment life. With its powerful flow rate and precise temperature control, the Hzly-200 is ideal for on-site maintenance of electrical substations and transformers.

Technical Specifications

Oil Processing Capacity

• Rated Flow Rate: 12,000 L/h
• Effective Oil Throughput: 200 L/min
• Pumping Speed: 1,080 m³/h
• Ultimate Vacuum: ≤ 5 Pa (absolute pressure)

Working Conditions

• Maximum Working Pressure: ≤ 0.5 MPa
• Operating Oil Temperature Range: 20°C to 80°C

Power & Energy Consumption

• Power Supply: 380V, 50Hz, 3-phase 3-wire system
• Heating Power: 150 kW (two independently controlled groups)
• Total Power Consumption: 165 kW

Structural Design

• Dimensions (L × W × H): 2050 × 1950 × 2100 mm
• Net Weight: 2420 kg

Reliability Indicators

• Continuous Operation Time: ≥ 200 hours
• Mean Time Between Failures (MTBF): ≥ 5000 hours
