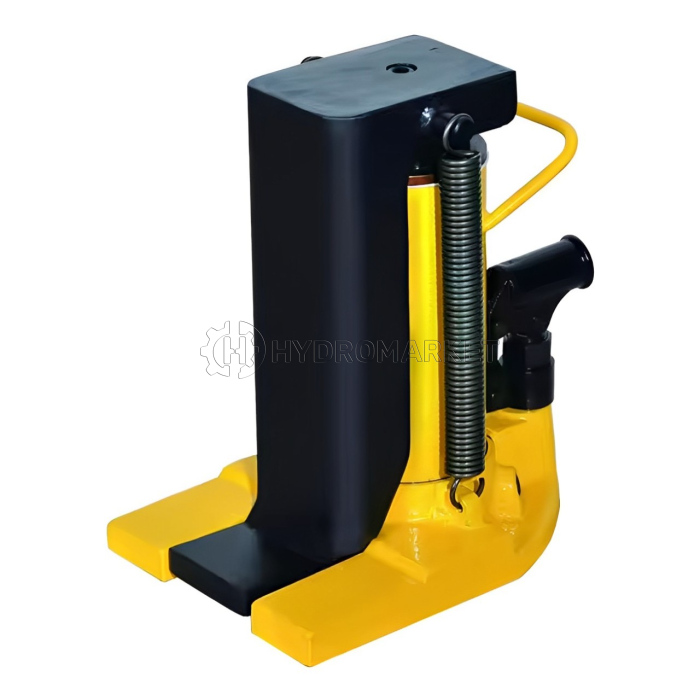

30 Ton Hydraulic Track Jack HHQD-30

The 30 Ton Hydraulic Toe Jack (Dongkrak Sepatu hidrolik) is a robust and versatile lifting tool designed for heavy equipment in tight or restricted spaces. With a low-height lifting toe, it provides easy access and precision handling. Its advanced design minimizes friction and protects the cylinder from side-load damage, ensuring durability and efficiency. Equipped with two extendible support feet, the jack offers enhanced stability, making it ideal for demanding lifting tasks.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Dongkrak Sepatu HHQD-30

• Head capacity - 30 ton.
• For lifting heavy equipment with minimum available access.
• Low height lifting toe.
• Precision guided to reduce friction and isolate cylinder from side-loads.
• Two extendible support feet provide extra stability


• Kapasitas kepala - 30 ton.
• Untuk mengangkat alat berat dengan akses minimum yang tersedia.
• Jari kaki pengangkat dengan ketinggian rendah.
• Dipandu secara presisi untuk mengurangi gesekan dan mengisolasi silinder dari beban samping.
• Dua kaki penyangga yang dapat diperpanjang memberikan stabilitas ekstra

Spesifikasi Teknis:

• Model: HHQD-30
• Cylinder Capacity (Head): 30 Ton
• Cylinder Capacity (Toe): 15 Ton
• Stroke: 160 mm
• Retracted Size: 347 mm
• Extended Size: 507 mm
• Base Size: 280x310 mm
• Base Height: 32 mm


• Model: HHQD-30
• Kapasitas Silinder (Head): 30 Ton
• Kapasitas Silinder (Toe): 15 Ton
• Stroke 160 mm
• Ukuran Ditarik: 347 mm
• Ukuran Diperpanjang: 507 mm
• Ukuran Dasar: 280x310 mm
• Tinggi Dasar: 32 mm
