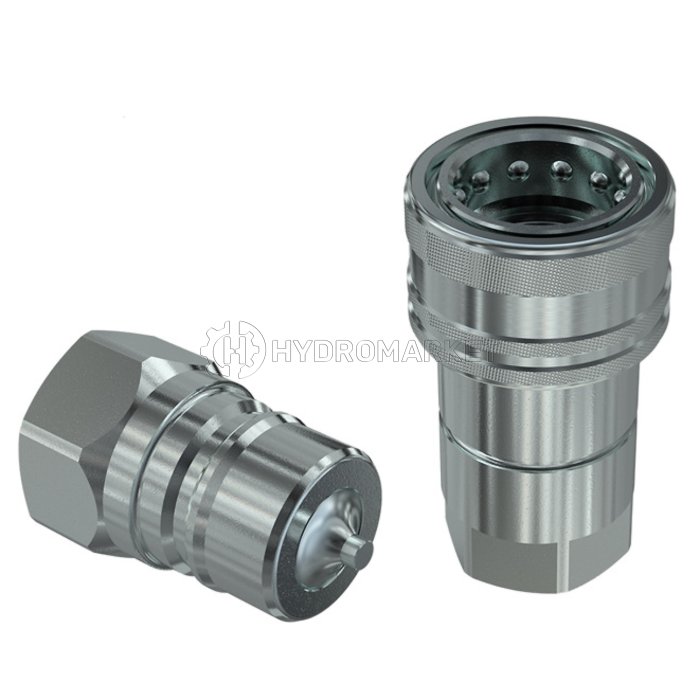

Hydraulic Quick Coupler 1/4"-3/8"-1/2"-3/4" NPT (ISO7241-A, 50mpa) / Kopling Hidrolik - 3/8"

Hydraulic Quick Coupler 1/4"-3/8"-1/2"-3/4" NPT ISO7241-A, 50mpa /// Kopling Coupler Hidrolik NPT ISO-A 1/4"-3/8"-1/2"-3/4" - Produk bergaransi, READY STOCK!

This Hydraulic Quick Coupler is widely used in various industrial connections, primarily for construction equipment, forestry equipment, agricultural machinery, hydraulic tools, petroleum equipment, steel equipment, chemical processes, and other hydraulic fluid applications.

Kopling Hidrolik (Coupler Hidrolik) ini banyak digunakan dalam berbagai sambungan industri, terutama untuk peralatan konstruksi, peralatan kehutanan, mesin pertanian, alat hidrolik, peralatan minyak bumi, peralatan baja, proses kimia, dan aplikasi fluida hidrolik lainnya.

Lihat produk ini di tokopedia! → Pergi ke tautan

• New design capable of resisting high flow and pressure pulse impacts, offering enhanced performance.
  Valve automatically closes when disconnected to prevent fluid leakage.
• Valve automatically opens when connected, ensuring continuous fluid flow within the working range.
• Key components are subject to heat treatment, resulting in improved durability.
• Reliable ball-lock mechanism securely connects the two mating parts.
• The female socket and male plug are made with precise manufacturing techniques.
• This coupling complies with ISO7241-A standards.
• ZY-A1 is interchangeable with the following products: American PARKER 6600 series, Italian FASTER ANV series, American AEROQUI P5600 series, and American HANSEN HA15000 series.


• Desain baru yang mampu menahan aliran tinggi dan dampak denyut tekanan, memberikan kinerja yang lebih baik.
• Valve secara otomatis menutup ketika terputus untuk mencegah kebocoran fluida.
• Valve secara otomatis terbuka ketika terhubung, memastikan aliran fluida terus-menerus dalam rentang kerja.
• Komponen utama mengalami perlakuan panas, menghasilkan daya tahan yang lebih baik.
• Mekanisme pengunci bola yang andal menghubungkan dua bagian yang berpasangan dengan aman.
• Kopling ini sesuai dengan standar ISO7241-A.
• ZY-A1 dapat dipertukarkan dengan produk berikut: seri PARKER 6600 (Amerika), seri FASTER ANV (Italia), seri AEROQUI P5600 (Amerika), dan seri HANSEN HA15000 (Amerika).

Spesifikasi Teknis Coupler Hidrolik:

• Model: ZY-A1
• Thread: G1/4" NPT1/4"; G3/8" NPT3/8"; G1/2" NPT1/2"; G3/4" NPT3/4"; G1" NPT1"
• Rated Pressure: 1/4"- 5000 psi; 3/8" - 4000 psi; 1/2 - 4000 psi; 3/4 - 3000 psi; 1" - 3000 psi
• Temperature Range: -20°C to +120°C
• Standard Seal Material: Nitrile Rubber (NBR)
• Rated Flow: 1/4"- 3 GPM; 3/8" - 6 GPM; 1/2 - 12 GPM; 3/4 - 28 GPM; 1" - 50 GPM
