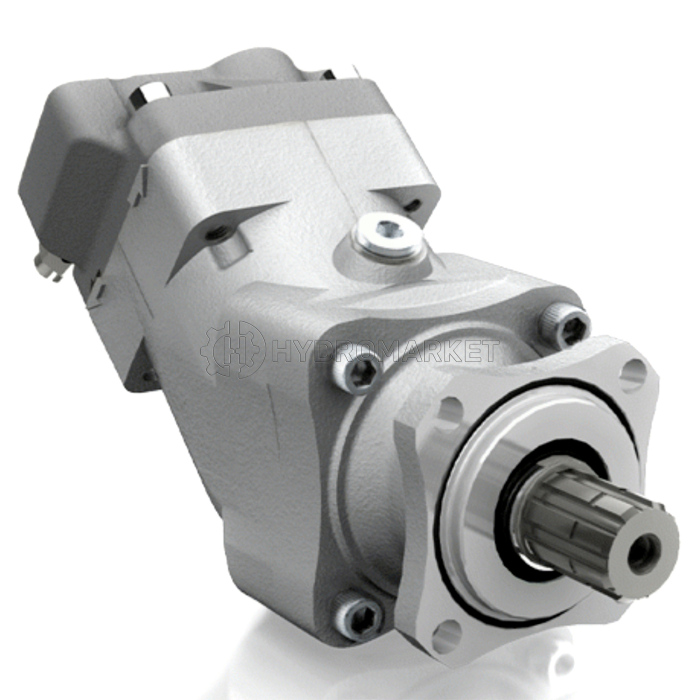

Hydraulic piston motor SCM-064W-P-SC4-C32-SZU-100 64cc - 400bar SUNFAB
SUNFAB
Main image
Click to view image in fullscreen
![]()
Karakteristik teknis motor hidrolik
Produk
SCM-064W-P-SC4-C32-SZU-100
Max. Pressure (Continuous)
350 bar (5,075 psi)
Max. Pressure (Intermittent)
400 bar (5,800 psi)
Max. Speed (Continuous)
5,700 rpm
Max. Speed (Intermittent)
6,300 rpm
Minimal Speed
300 rpm
Max. Power (Continuous)
121 HP
Max. Power (Intermittent)
261 HP
Mounting
SAE-C (SAE J744)
Shaft
31.7 mm - SPI (diameter 1-1/4)
Persediaan
SKU
m_100065605
Deskripsi / Hydraulic piston motor SCM-064W-P-SC4-C32-SZU-100 64cc - 400bar SUNFAB
Karakteristik teknis motor hidrolik
| Produk | SCM-064W-P-SC4-C32-SZU-100 |
| Max. Pressure (Continuous) | 350 bar (5,075 psi) |
| Max. Pressure (Intermittent) | 400 bar (5,800 psi) |
| Max. Speed (Continuous) | 5,700 rpm |
| Max. Speed (Intermittent) | 6,300 rpm |
| Minimal Speed | 300 rpm |
| Max. Power (Continuous) | 121 HP |
| Max. Power (Intermittent) | 261 HP |
| Mounting | SAE-C (SAE J744) |
| Shaft | 31.7 mm - SPI (diameter 1-1/4) |
Informasi Lebih Lanjut
| Negara | Baru |
|---|---|
| Masa garansi, bulan | 12 |
| Merek | SUNFAB |
| Negara Asal | Swiss |
