Hydraulic Hole Opener Manual TPA-8A Punching Tool Hole expander Hydraulic Punch

TPA-8A Punching Tool is used for punching mild plates. It has the advantages of good design, comfortable operation, high pressure and high efficiency and is an ideal tool for the construction site. Suitable for metal punching (steel plate, stainless steel, etc.)

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Punching Tool:

1. Beautiful structure, easy to operate, head can rotate 360°
2. The head and cylinder body made of aluminum alloy make the product light and easy to carry
3. It can drill holes on soft steel plates below 3.2mm, with a maximum diameter of 60.5mm. It can drill holes on soft steel plates below 2mm with a maximum diameter of 115.5mm.

Spesifikasi Teknis:

• Model: TPA-8A
• Opening range: 3mm or less (ф16.5-60.8mm) mild steel 2mm or less (ф16.5-115.5mm) mild steel 2mm or less (ф16.5-60.8mm) stainless steel
• Opening pressure: 6 tons
• Stroke: 22mm
• Length: 310mm
• Weight: 6.5kg

Packaging:

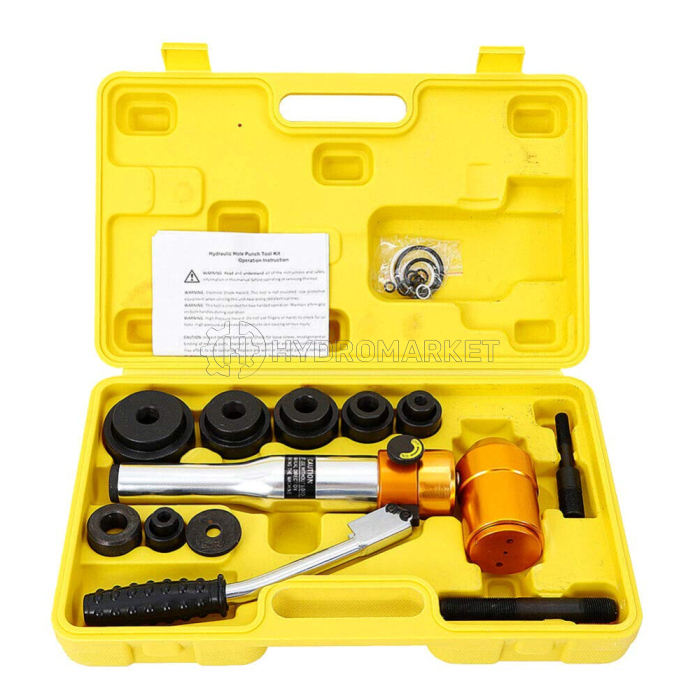

• Plastic box mold configuration: ф22, ф27.5, ф34.3, ф43, ф49, ф60.8mm ( 1 small tie rod, 1 large tie rod)
