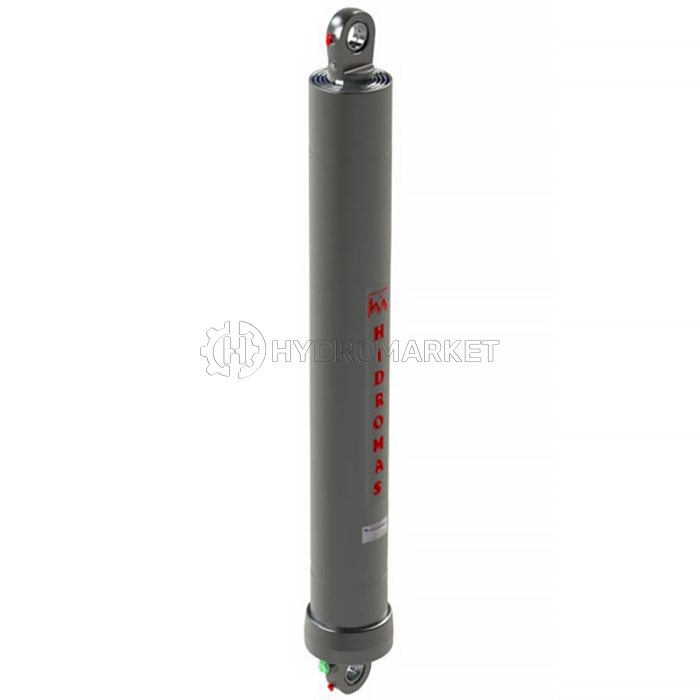

Hydraulic cylinder Hidromas GHS 155-3-3585 B (front ear-ear)

Hydraulic cylinder Hidromas GHS 155-3-3585 B (front ear-ear)

Hidromas offers its customers optimized solutions for tipping works thanks to a wide range of cylinders. From 1 meter to 11 meters, up to 11 stages with different types of mounting, front cylinders are produced in the shortest possible time. The strength of the company's products lies in solid cold-drawn pipes, precise processing, and assembly on an automated line. Hidromas also offers its customers fully chrome-plated stages (with a diameter of 50 microns) as a standard offering.

With its inclined design and powerful performance, B Type Cylinders help you perform your work safely and effectively.

Type B cylinders are designed to be mounted on cases with inclined front panels. Perforated or bearing connection points located on the lower and upper heads of the cylinder are used to mount the case to its upper part and to the chassis.

Hydraulic cylinders of this type are presented in 3 series: diamond, gold and classic.

Hydraulic cylinders of this type are presented in 3 series: diamond, gold and classic.

Technical Specifications

• Nominal pressure: 170 bar
• Maximum pressure: 190 bar
• Cylinder diameter: 155 mm
• Effective cylinder diameter: 135 mm
• Cylinder length in closed position: 1632 mm
• Ear diameter: GE 50 (Ø50)
• Oil inlet: R 3/4"
• Cylinder stroke (total): 3585 mm
• Oil displacement (total): 66 L
• Number of rods: 3
• Mounting type: external
• Cylinder weight: 167 kg

Manufacturer code: 43155335852

Please check availability with the manager!
