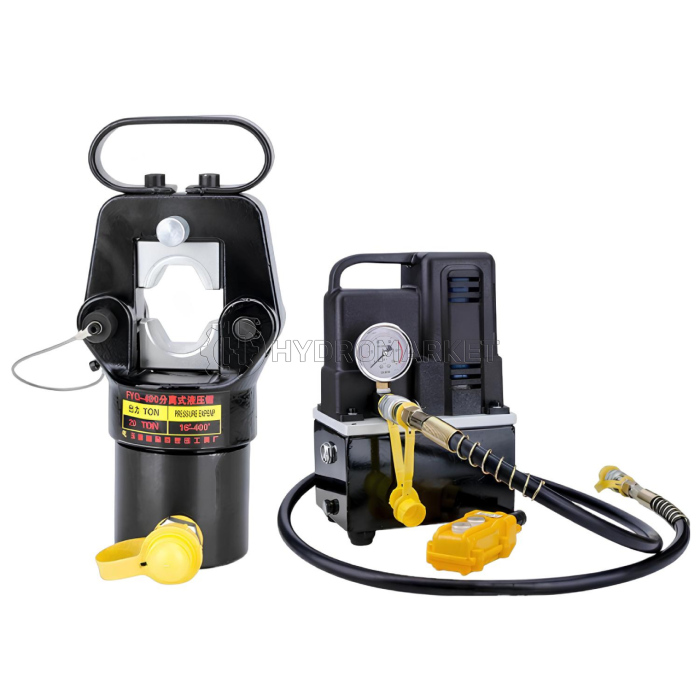

Hydraulic Crimping Head FYQ-400 + Portable Electric Pump QQ-700 / 16-400 mm Mesin Press Skun Kabel Hidrolik + Pompa Listrik Portabel

Split-type Hydraulic Crimping Tool FYQ-400, Split Hydraulic Crimping Head + Portable Electric Pump QQ-700 /// Mesin Press Skun Kabel Hidrolik, Tang Press Skun Hidrolik FYQ400 + Pompa Listrik Portabel QQ-700

Fitur Utama Crimping Tool FYQ-400:

1. It is specially designed for inside and outside power transmission and distribution project, various kinds of connecting terminals, overhead and underground cable lugs with different types, a wide range of crimping dies from 16mm2 To 400mm2 To suit for different size demand.
2. Crimping high voltage cable sleeve, wire grips, un-insulated terminals, hexagon terminals. Crimping part tight and uneasy to break out in good conductivity.
3. The oil pipe coupler fitted with ZG 3/8'' thread.
4. Equipped with QQ-700 Electric Pump.

1. Dirancang khusus untuk proyek transmisi dan distribusi daya dalam dan luar ruangan, berbagai jenis terminal sambungan, lug kabel atas dan bawah tanah dengan berbagai tipe, serta berbagai cetakan crimping dari 16mm2 hingga 400mm2 untuk memenuhi kebutuhan ukuran yang berbeda.
2. Digunakan untuk crimping selongsong kabel tegangan tinggi, penjepit kabel, terminal tanpa isolasi, dan terminal hexagonal. Bagian crimping rapat dan tidak mudah lepas serta memiliki konduktivitas yang baik.
3. Pipa oli dilengkapi dengan kopling berulir ZG 3/8''.
4. Dilengkapi dengan Pompa Listrik QQ-700.

Spesifikasi Teknis FYQ-400:

• Output Force: 20 Tons
• Stroke: 20 mm
• Crimping Type: Hexagonal crimp
• Crimping Range: Copper 16–400 mm2, Aluminum 16–300 mm2
• Die Set Includes: 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400 mm2
• Net/Gross Weight: 5.6 kg / 11 kg (including packaging and dies)

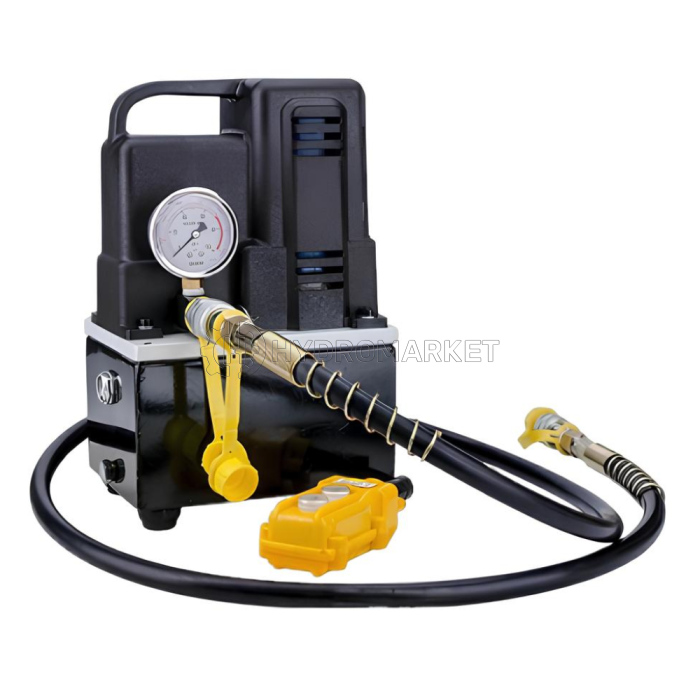

Spesifikasi Teknis QQ-700:

• High Pressure: 70 MPa
• Low Pressure: 7 MPa
• High Pressure Flow Rate: 0.7 L/min
• Low Pressure Flow Rate: 5 L/min
• Motor Power: 1.2 kW
• Oil Tank Capacity: 2 L
• Weight: 10 kg
