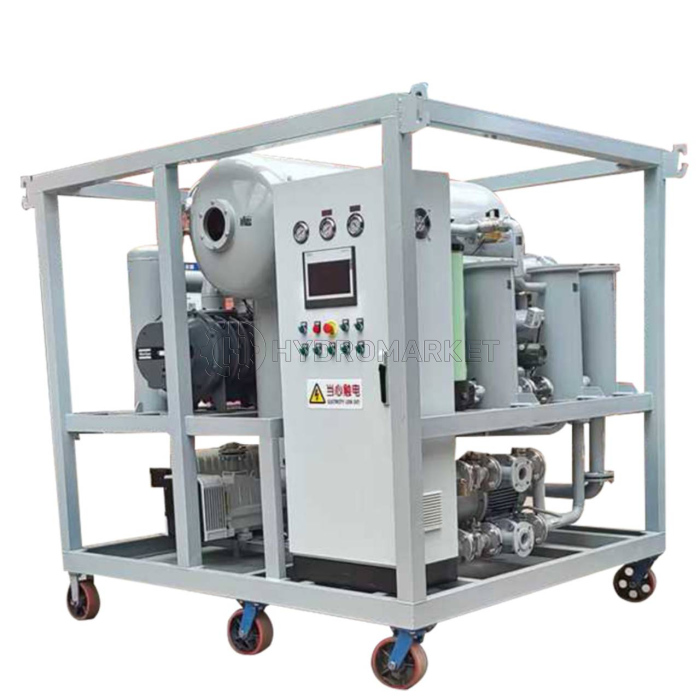

Huazheng HZLY-30A High-Vacuum Transformer Oil Purification System (1800 LPH)

Overview

The HZLY-30A High-Vacuum Oil Purification System is specially designed for power plants, substations, and industrial environments including railway and metallurgy sectors. This professional-grade equipment is capable of purifying various dielectric fluids such as transformer oil, insulating oil, lubricating oil, and switchgear oil.

By efficiently removing contaminants and moisture, the HZLY-30A restores and improves the dielectric strength of deteriorated oils, making it ideal for maintaining reliable insulation performance in small and medium transformers.

Key Features

• Restores dielectric strength in aged or degraded insulating oils
• Significantly improves breakdown voltage after treatment
• Provides reliable insulation for small and medium power transformers
• Efficient removal of water, gases, and solid particles
• Compact design for easy transport and deployment
• High-efficiency multi-stage filtration system
• Ensures stable dielectric performance and oil purity

Technical Specifications

• Model: HZLY-30A
• Rated Flow Rate: 1800 L/h
• Effective Oil Throughput: 30 L/min
• Vacuum Pumping Speed: 252 m³/h
• Ultimate Vacuum: ≤10 Pa
• Working Pressure: ≤0.5 MPa
• Oil Operating Temperature: 20–80°C
• Power Supply: 380V, 50Hz, 3-phase, 3-wire
• Heating Power: 30 kW (2 independently controlled groups)
• Total Power: 36 kW

Company Information

Huazheng Electric Manufacturing (Baoding) Co., Ltd, established in 2008, is a certified supplier for the State Grid Corporation of China, which means we are trusted by the Chinese government. Our products are widely distributed across China and exported to countries such as the USA, UK, Bulgaria, Brazil, Chile, Malaysia, Vietnam, and more.

Located near Tianjin Port, we offer convenient logistics and international shipping.

Our product range includes:

• Insulation resistance testers
• Cable fault locators
• Power quality analyzers
• High-voltage generators
• High-voltage capacitors
• Transformer testing equipment

We provide a 1-year warranty and lifetime support. All our equipment is certified by CE, ISO, and IEC, ensuring reliable performance and factory-direct pricing.
