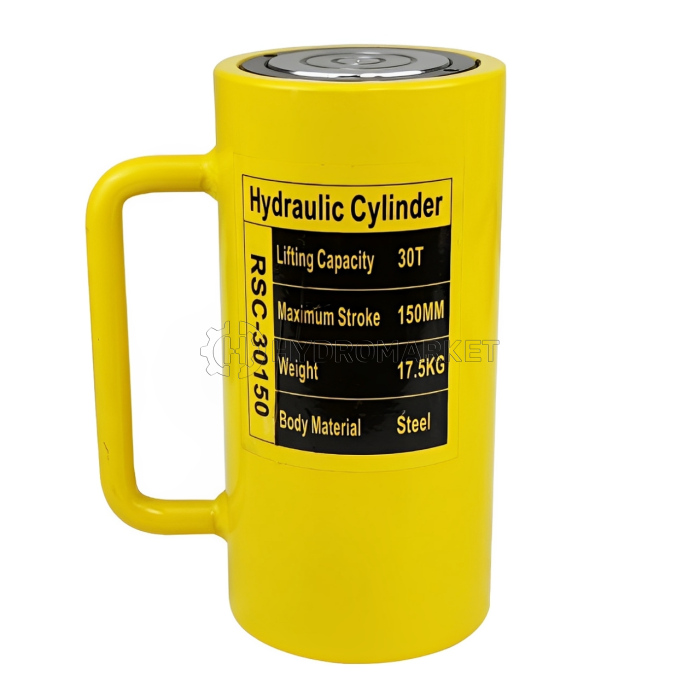

High Hydraulic Cylinder RSC-30150 (30Ton, Stroke 150mm) / Hydraulic Jack Silinder Hidrolik 30Ton

High-Tonnage Hydraulic Cylinder High Height 30 Ton RSC-30150, Hydraulic Jack 30 Ton /// Dongkrak Hidrolik 30 Ton, Silinder Hidrolik 30 Ton RSC-30150 Single Acting

• Model RSC-30150 adalah silinder hidrolik single acting dengan kapasitas 30 ton pada tekanan 700 bar, yang dirancang untuk digunakan dalam berbagai aplikasi industri berat. Dengan desain yang ringkas namun tangguh, silinder ini ideal untuk digunakan dalam kondisi ruang terbatas dan aplikasi presisi.
• Kapasitas Besar: Mampu menangani beban hingga 30 ton, memberikan daya yang kuat dalam aplikasi berat.

Stroke Panjang: Stroke sepanjang 150 mm memungkinkan rentang gerak yang lebih besar dalam berbagai tugas hidrolik.

• High Tonnage Capacity: The RSC-30150 single-acting hydraulic cylinder jack features an impressive 30-ton output, making it ideal for heavy-duty applications and meeting the demands of industrial users.
• Compact Design: With a collapsed height of 210 mm, this hydraulic cylinder is specifically designed for space-constrained environments, making it perfect for users who require a compact lifting solution.
• Time and Energy Saving: With it, you can lift heavy objects more easily, reducing the risk of manual labor, improving the safety of use, and enhancing efficiency
• Reliable Performance: Certified to ISO 9001:2008, this product ensures a high level of quality and reliability, providing customers with peace of mind in their purchase.
• Application: It is suitable for electric power, the chemical industry, mining, railroad, rescue, steel, bridge, machinery, and other industries. It is a good helper for starters, processors, welders, auto body, and frame workshops.

Lihat produk ini di tokopedia! → Pergi ke tautan

Spesifikasi Teknis Silinder Hidrolik RSC-30150:

• Lifting Capacity: 30 tons
• Height: 210 mm
• Stroke: 150 mm
• Outer Diameter: 105 mm
• Inner Diameter: 80 mm
• Weight: 17.5 kg
• Effective Area: 50.24 cm²
• Compatible Hydraulic Pump: CP-700


• Kapasitas Silinder: 30 ton
• Tinggi: 210 mm
• Stroke: 150 mm
• Diameter Luar: 105 mm
• Diameter Dalam: 80 mm
• Berat: 17.5 kg
• Area Efektif: 50.24 cm²
• Pompa Hidrolik yang Kompatibel: CP-700
