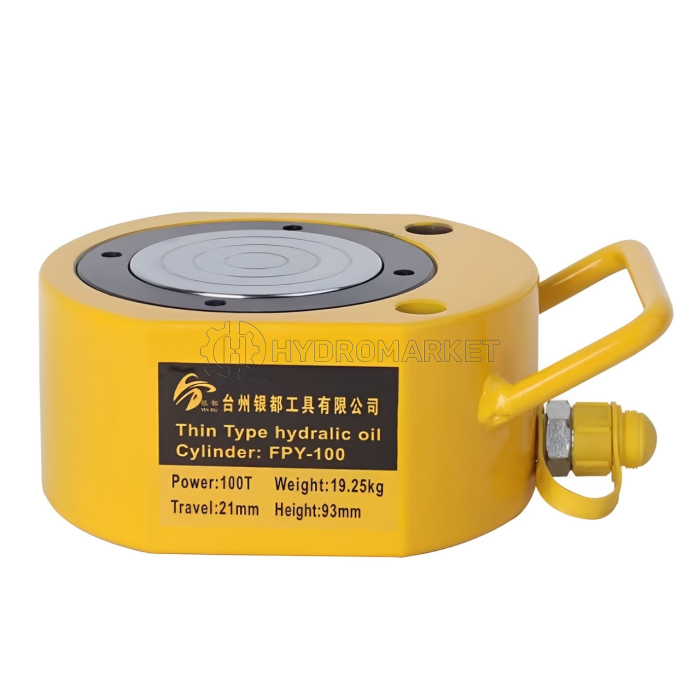

Hidrolik Silinder FPY-100 (100 Ton, 21 mm) / Hydraulic Cylinder / Hydraulic Jack

Hydraulic Jack, High-Tonnage Hydraulic Cylinder FPY-100 (Dongkrak Hidrolik, Silinder Hidrolik Berkapasitas Tinggi FPY-100)

This hydraulic cylinder offering high tonnage capacity (100T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 21 mm stroke, 300 ml oil capacity. Compatible with CP-700 hand pump and ZCB-700A/D electric pumps.

Silinder Hidrolik ini menawarkan kapasitas tonase tinggi (100T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 21 mm, kapasitas oli 300 ml. Kompatibel dengan pompa tangan CP-700 dan pompa listrik ZCB-700A/D.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Silinder Hidrolik FPY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis:

• Model: FPY-100
• Tonnage (Cylinder Capacity): 100 T
• Effective Area: 143 cm2
• Outer Diameter: 198x173 mm
• Inner Diameter: 135 mm
• Travel (Stroke): 21 mm
• Collapsed Height: 93 mm
• Extended Height: 114 mm
• Plunger Diameter: 100 mm
• Oil Capacity: 300 ml
• Weight: 19.25 kg
• Recommended Hand Pump: CP-700
• Recommended Electric Pump: ZCB-700A, ZCB-700D


• Model: FPY-100
• Kapasitas Silinder: 100 T
• Area Efektif: 143 cm2
• Diameter Luar: 198x173 mm
• Diameter Dalam: 135 mm
• Stroke: 21 mm
• Tinggi Tertutup: 93 mm
• Tinggi Terbuka: 114 mm
• Diameter Plunger: 100 mm
• Kapasitas Oli: 300 ml
• Berat: 19.25 kg
• Pompa Manual yang Direkomendasikan: CP-700
• Pompa Elektrik yang Direkomendasikan: ZCB-700A, ZCB-700D
