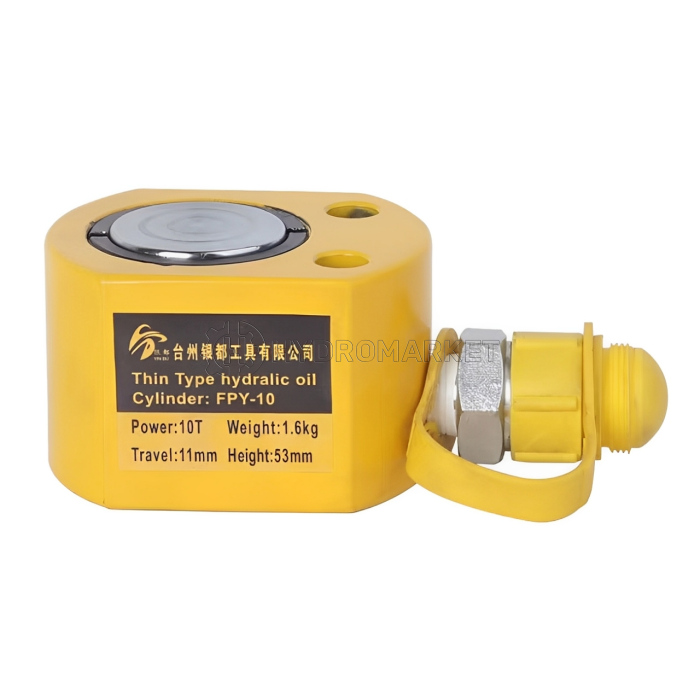

Hydraulic Cylinder Jack FPY-10 (10 Ton, 11 mm) / Hydraulic Cylinder Ram

Silinder Hidrolik 10 Ton FPY-10 – Stroke 10mm, Kuat & Ringkas untuk Angkat Berat

This hydraulic cylinder offering high tonnage capacity (10T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 11 mm stroke, 16.6 ml oil capacity. Compatible with CP-180 hand pump and ZCB-700A/D electric pumps.

Silinder Hidrolik ini menawarkan kapasitas tonase tinggi (10T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 11 mm, kapasitas oli 16.6 ml. Kompatibel dengan pompa tangan CP-180 dan pompa listrik ZCB-700A/D.

Fitur Utama Silinder Hidrolik FPY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis:

• Model FPY-10 (Alternative FPY-101)
• Pump System Single Acting Hydraulic Pump Minimum 180cc
• Cylinder Capacity @700 Bar 10 Ton / 111 KN
• Stroke 10 mm
• Effective Area 15.9 cm
• Oil Capacity 16 ml
• Closed Height 48 mm
• Extended Height 58 mm
• Outside Diameter 83x60 mm
• Inside Diameter 45 mm
• Piston Rod Diameter 38 mm
• Handle No
• Packing Weight 1.6 kg
