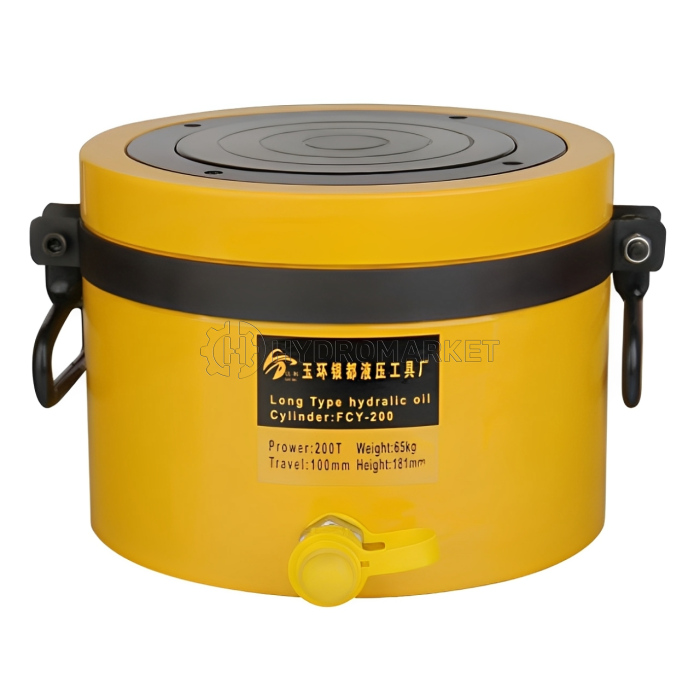

Hidrolik Silinder FCY-200 (200 Ton, 100 mm) / Hydraulic Cylinder / Hydraulic Jack

Hydraulic Jack, High-Tonnage Hydraulic Cylinder FCY-200 (Dongkrak Hidrolik, Silinder Hidrolik Berkapasitas Tinggi FCY-200)

This hydraulic cylinder offering high tonnage capacity (200T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 100 mm stroke, 3024 ml oil capacity. Compatible with CP-800 hand pump and ZCB-700A/D electric pumps.

Silinder hidraulik ini menawarkan kapasitas tonase tinggi (200T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 100 mm, kapasitas oli 3024 ml. Kompatibel dengan pompa tangan CP-800 dan pompa listrik ZCB-700A/D.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Silinder Hidrolik FCY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis:

• Model: FCY-200
• Tonnage (Cylinder Capacity): 200 T
• Effective Area: 302.5 cm2
• Outer Diameter: 248 mm
• Inner Diameter: 196.3 mm
• Travel (Stroke): 100 mm
• Collapsed Height: 181 mm
• Extended Height: 281 mm
• Plunger Diameter: 158 mm
• Oil Capacity: 3024 ml
• Weight: 57.4 kg
• Recommended Hand Pump: CP-800
• Recommended Electric Pump: ZCB-700A, ZCB-700D


• Model: FCY-200
• Kapasitas Silinder: 200 T
• Area Efektif: 302.5 cm2
• Diameter Luar: 248 mm
• Diameter Dalam: 196.3 mm
• Stroke: 100 mm
• Tinggi Tertutup: 181 mm
• Tinggi Terbuka: 281 mm
• Diameter Plunger: 158 mm
• Kapasitas Oli: 3024 ml
• Berat: 57.4 kg
• Pompa Manual yang Direkomendasikan: CP-800
• Pompa Elektrik yang Direkomendasikan: ZCB-700A, ZCB-700D
