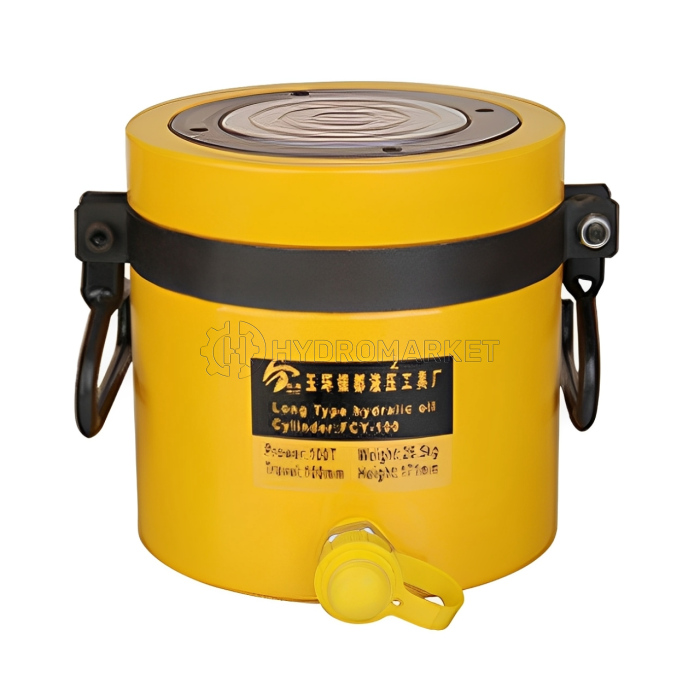

Hidrolik Silinder FCY-100 (100 Ton, 100 mm) / Hydraulic Cylinder / Hydraulic Jack

Hydraulic Jack, High-Tonnage Hydraulic Cylinder FCY-100 (Dongkrak Hidrolik, Silinder Hidrolik Berkapasitas Tinggi FCY-100)

This hydraulic cylinder offering high tonnage capacity (100T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 100 mm stroke, 1430 ml oil capacity. Compatible with CP-700-3 hand pump and ZCB-700A/D electric pumps.

Silinder hidraulik ini menawarkan kapasitas tonase tinggi (100T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 100 mm, kapasitas oli 1430 ml. Kompatibel dengan pompa tangan CP-700-3 dan pompa listrik ZCB-700A/D.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Silinder Hidrolik FCY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis:

• Model: FCY-100
• Tonnage (Cylinder Capacity): 100 T
• Effective Area: 143.06 cm2
• Outer Diameter: 178 mm
• Inner Diameter: 135 mm
• Travel (Stroke): 100 mm
• Collapsed Height: 176 mm
• Extended Height: 276 mm
• Plunger Diameter: 100 mm
• Oil Capacity: 1430 ml
• Weight: 28.8 kg
• Recommended Hand Pump: CP-700-3
• Recommended Electric Pump: ZCB-700A, ZCB-700D


• Model: FCY-100
• Kapasitas Silinder: 100 T
• Area Efektif: 143.06 cm2
• Diameter Luar: 178 mm
• Diameter Dalam: 135 mm
• Stroke: 100 mm
• Tinggi Tertutup: 176 mm
• Tinggi Terbuka: 276 mm
• Diameter Plunger: 100 mm
• Kapasitas Oli: 1430 ml
• Berat: 28.8 kg
• Pompa Manual yang Direkomendasikan: CP-700-3
• Pompa Elektrik yang Direkomendasikan: ZCB-700A, ZCB-700D
