Pembagi Hidrolik U4690.06.901 (GR2-3), 12V.
Main image
Click to view image in fullscreen
![]()
Persediaan
SKU
1112285823
Rp 2.450.841,75
Deskripsi / Pembagi Hidrolik U4690.06.901 (GR2-3), 12V.

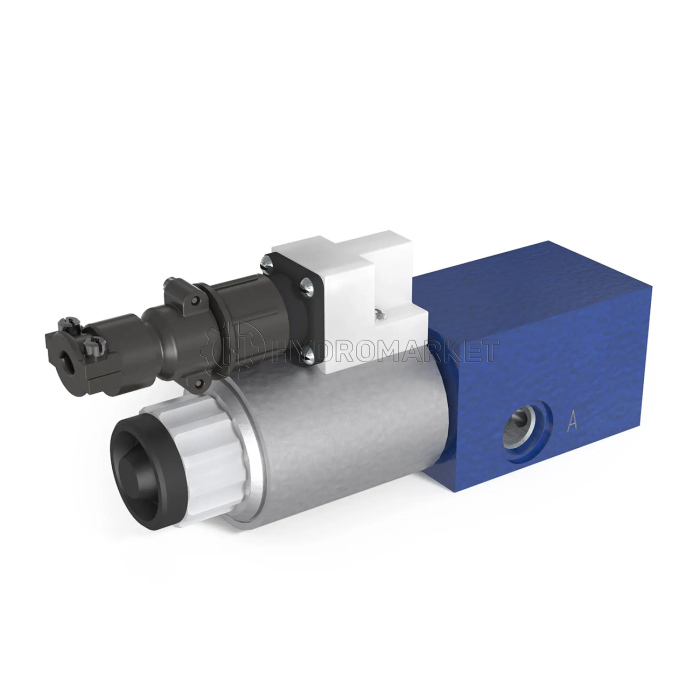

Hydraulic distributor U4690.06.901 (GR2-3), 12V
Hydraulic distributor with electromagnetic control U4690.06.901 is intended for distribution of working fluid flow in hydraulic systems, construction, road and municipal machines, which operate at ambient temperatures from minus 60℃ to plus 50℃.
Technical characteristics
| Nominal passage, mm | 6 |
| Input pressure, nominal, MPa (kgf/cm2) | 32 (320) |
| Output (drain) pressure, maximum, MPa (kgf/cm2) | 6 (60) |
| Working fluid flow rate, nominal l/min: - for circuits: 574,574A,574E - for circuits: 573,573E - maximum (depending on the flow distribution circuit execution), not more than |
16 |
| Internal tightness (maximum internal leaks per each line), cm3/min, not more than: - for circuits: 574 . . . . . . . . . . . - For circuits: 573,573E. . . . . . . . . . . - For other circuits. . . . . . . . . . . |
200 |
| Response time, ms, not more than: - with AC electromagnet - with DC electromagnet |
20 |
| Electromagnet supply voltage, V:- DC - AC |
12, 24, 48,110 |
| Operating conditions: Position during operation: - For spring return. . . . . . . . . . . - For executions O and OF. . . . . . . . . . . Working fluid. . . . . . . . . . . . . |
any |
| Weight, kg, not more than | 1.4 |
Suitable for crane KS-3577-3
Availability check with the manager!
Informasi Lebih Lanjut
| Code 1C | 0А-24707 |
|---|---|
| Negara | Baru |
| Masa garansi, bulan | 12 |
| Negara Asal | Ukraina |
