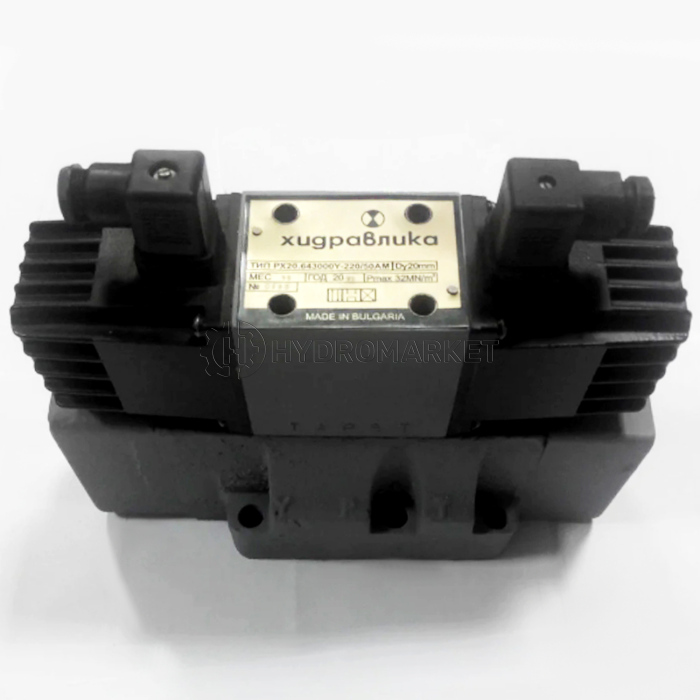

Hydraulic Distributor RX20.34 30000

Description

The hydraulic distributors RX20.34 are four-line spool valves with double-sided electro-hydraulic control, with a nominal diameter of 20 mm, designed for hydraulic systems.

The hydraulic distributor RX2034 30000 is a complete analogue of the domestic hydraulic distributor 1P203.34

The spool position is switched using a control element - a pilot. In three-position distributors with electro-hydraulic control, the VE6.34 pilot is installed in the RX20. They operate from a direct or alternating current network with a voltage of 12V, 24V, 110V, 220V, .

The hydraulic distributors have a spigot design.

The hydraulic distributors RX2034 3000 have found wide application in machine building, metallurgy, light industry and road construction equipment. They are used in hydraulic systems of machines, presses, machines,  .

The hydraulic distributors are operated on mineral oils with a kinetic viscosity of 10 to 400 mm2/s. The working fluid should be cleaned no coarser than class 12 purity according to GOST 17216-2001, which is ensured by using a filter with a nominal filtration fineness of no coarser than 25 μm. The operation of hydraulic distributors is allowed at ambient temperatures from -40 to +50 ^oC.

Hydraulic diagram

RX2034

24

200

Spring return
