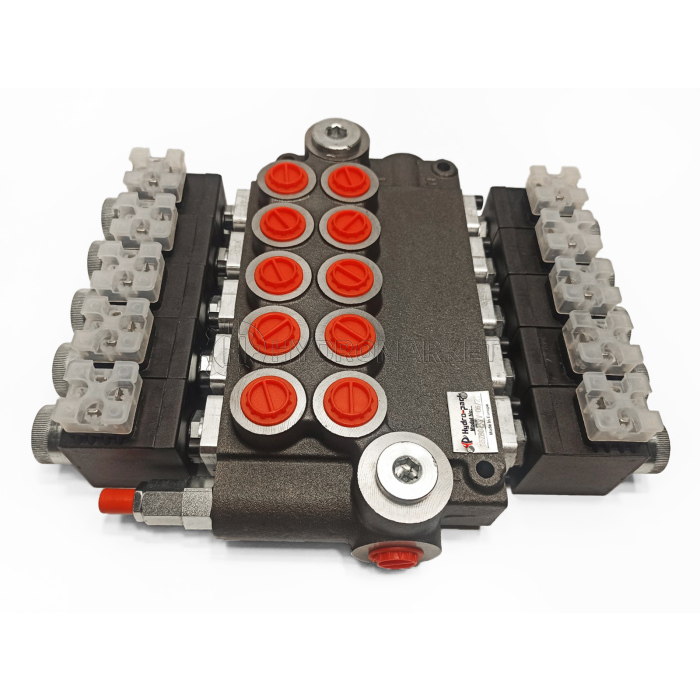

Hydraulic monoblock valve 5Z80 24V.
Persediaan
Deskripsi / Hydraulic monoblock valve 5Z80 24V.
Hydraulic distributor 5Z80 proportional series z80 with mechanical control on 5 zolotniks (sections, levers) with non-nominal oil supply of 80 l/min!
They have a built-in pressure valve, supply pressure P: 250 bar, drain ports T: 50 bar, channels A and B: 300 bar.
The Z series hydraulic distributors are an improved model of the Bulgarian P80 series hydraulic distributor. Z80 distributors have less leakage compared to standard monoblock hydraulic distributors P40 and P80 thanks to special notches and grooves in the zolotnik, which the standard zolotnik does not have, and the Z series hydraulic distributors have 2 drain lines T and supply line P, while monoblock hydraulic distributors have only one drain line T and one supply line P.
Thanks to the special notches on the zolotnik in Z80 hydraulic distributors, during operation, a so-called oil film is created on the zolotnik, which significantly reduces leaks in the pair of body-zolotnik to practically zero.
Informasi Lebih Lanjut
| Code 1C | 0А-23516 |
|---|---|
| Negara | Baru |
| Masa garansi, bulan | 12 |
| Negara Asal | Türkiye |
