Monoblock Hand Valve Hidrolik 4P40

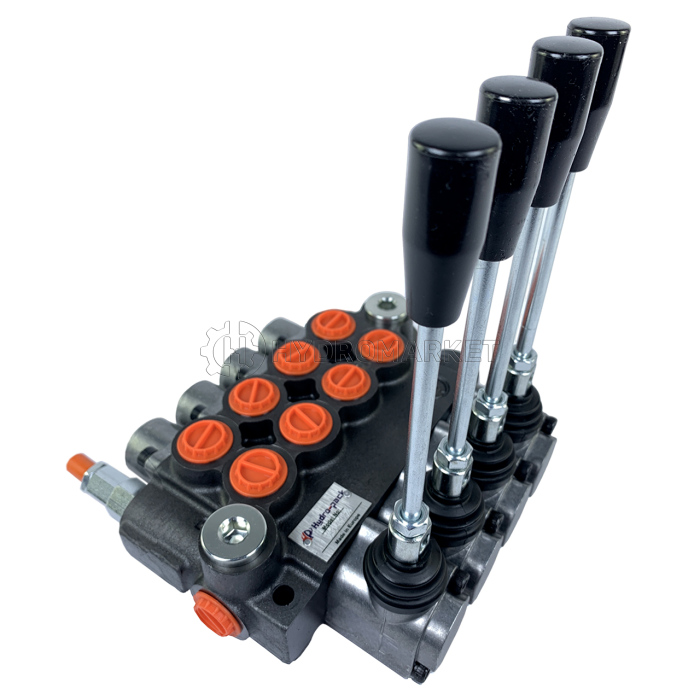

Hydraulic Diverter Valve 4P40 Badestnost (Bulgaria)

The hydraulic diverter valve 4P40 is used for starting, stopping, and controlling the flow of working fluid between the generators of the pressure flow (hydraulic pumps) and the consumers of the working fluid flow (hydraulic cylinders, hydraulic motors). The monoblock diverter valve 4P40 has manual control valves. The valves control the flow of fluid in three positions using a handle. The valves are centered in a middle spring without fixation in extreme positions.

The Badestnost 4P40 diverter valve is designed for parallel distribution of the working fluid flow. The valves have a common check valve. To increase the lifespan of the valve, the valves are covered on both sides with special caps that ensure cleanliness and tightness. A pressure relief valve is installed at the inlet of the valve, which is adjustable within a specified range. The valve is attached to the installation location with three M8 bolts.

Manufacturer code: B04P40-1A1A1A1A1-GKZ-1/2

Technical specifications of 4P40:

• Number of working sections: 4
• Nominal flow rate: 40 l/min
• Maximum pressure: 35 MPa
• Operating temperature range: -40°C to +60°C
• Working fluid viscosity: 10-460 cSt
• Filtration degree: 25 nm
• Working fluid temperature: -15°C to +80°C
• Internal leakage at P=16 bar: < 6 cm3/min
• Valve actuation force: < 25 N
• Weight of the diverter valve: 4.7 kg

Application: Multilift / bunker MPR-1, MPR-2, MSK-1, MSK-3, MSK-3101, MSK-4301

Thread for monoblock valves R80: 1/2 for supply and return, 3/4 for cylinders

Depending on the type of work, the hydraulic diverter valve can be set to floating or fixed mode on any of its sections!

The presence of a floating state allows this model to be used in agricultural and municipal machinery, where the appropriate operating mode is required. For example, a harrow. The "fixed" function means that all lever positions, including the floating position, are fixed. The lever is set by the operator in a certain position and will remain in that position until a mechanical switch to another position occurs.
