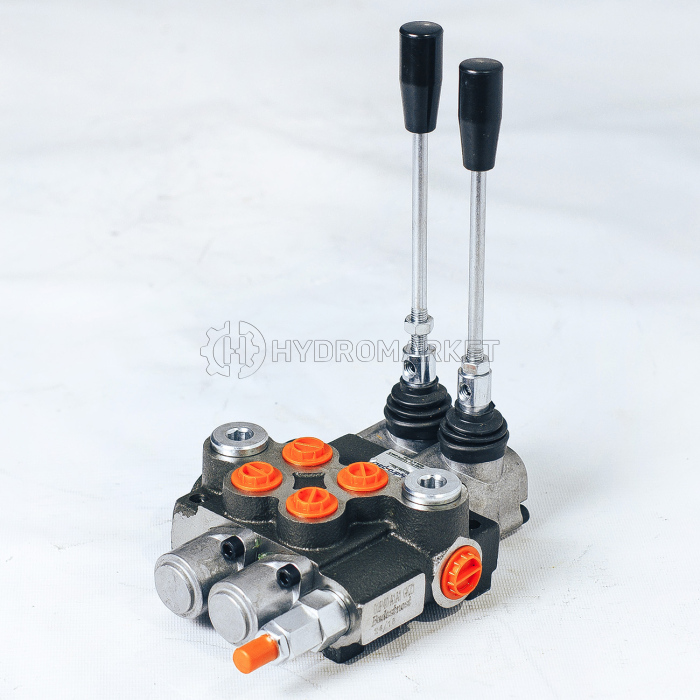

Hydraulic distributor 02P40 1K16K16 GKZ1 Badestnost
Description
The monoblock hydraulic distributor 02P40 1K16K16 GKZ1 is designed for controlling the flow of working fluid (hydraulic oil) in hydraulic systems. The hydraulic distributor allows for the change of direction of the hydraulic oil flow to the corresponding hydraulic mechanism.
The hydraulic distributor (Bulgaria) is a monoblock with an open center 02P40 1K16K16 GKZ1 and is used for controlling two working organs. The handle has a spring return to the neutral position. In the neutral position of the handle, the working fluid flows into the oil tank (open center). There is an adjustable main safety valve.
The hydraulic distributor (Velmash), OMT-97 hydraulic manipulator (Velmash), LV-185-10, 14 hydraulic manipulators (Maykop), (Atlant-90) (Maykop), Loglift, SF-65 (Solombal), OMT70-01, 02, 03, 04 (Velmash), MPR-1, MPR-2, MSK-1, MSK-3, MSK-3101, MSK-4301 (Ryazk) and other mobile equipment... and in other hydraulic systems.
Technical specifications:
| Ambient temperature |
-40C ... + 60C |
| Hydraulic fluids - mineral oil-based / hydraulic oil |
|
| Fluid temperature |
-15oC ... + 80C |
| Maximum working pressure, P = 250; T = 50 bar |
A, B = 300 bar |
| Leakage (A, BT) |
5 cm3/min at 100 bar, 46 cSt |
| Nominal flow rate |
40 l/min |
| Modification / Coils |
from 1 to 7 |
Code: 02P40 1K16K16 GKZ1
We are also ready to offer you hydraulic distributors with the following markings:
R-40 02R-40 03R-40 04R-40
RH-80 R-80 02R-80 03R-80 04R-80
1RH-346 and 348 up to 8RH
P80-A1 GKZ1
2P80 1A1A1 GKZ1
3P80 1A1A1A1 GKZ1
4P80 1A1A1A1A1 GKZ1
P40-A1 GKZ1
4P40 1A1A1A1A1 GKZ1
5P40 1A1A1A1A1A1 GKZ1
0P40-A1 GKZ1
02P40 1A1A1 GKZ1
03P40 1A1A1A1 GKZ1
04P40 1A1A1A1A1 GKZ1
05P40 1A1A1A1A1A
