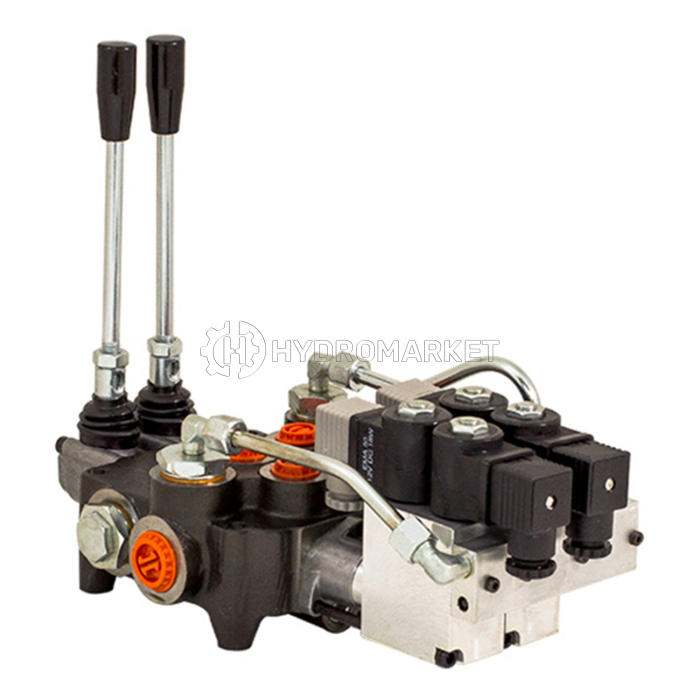

Hydraulic distributor 2 P80 VRP 1A1ED31A1ED3 24V GKz1 (This is already in Ukrainian, not English. Please provide the original text in English for translation.)

   Hydraulic Distributor (2-Section) Badestnost Bulgaria with Electronic-Manual Control

Article: 2P80-VRP-1A1ED3 A1ED3 G K
The hydraulic distributor 2P80 VRP 24V GKz1 1A1ED31A1ED3 Badestnost (Bulgaria) with electro-hydraulic control is used to control the flow of working fluid.

The hydraulic distributor 2P80 VRP 1A1ED31A1ED3 24V GKz1 with electro-hydraulic control ensures the change of the direction of the working fluid flow to the executive hydraulic mechanism.

The hydraulic distributor 2P80 VRP 1A1ED31A1ED3 is used both in mobile equipment and in machine tools. Thanks to a wide variety of execution schemes and low price, the hydraulic distributor 2P80 VRP 1A1ED31A1ED3 24V GKz1 is perfect for creating various hydraulic devices and mechanisms.

Specifications:

• Distributor with electro-hydraulic control (flow rate 80 l/min, 25 MPa)
• Max. operating valve pressure, P=250; T=50 bar: A, B = 300 bar
• Nominal flow rate: 80 l/min
• Leakage (A,B-T): 18cm3/min at 120 bar
• Operating pressure min/max: 10/50 bar
• Max operating pressure L (line T): 25 bar
• Electromagnet operation feature - allowable voltage deviation: +/-10%
• Nominal power, productivity: 24W / 100%
• Set of collectors from 1 to 4 sections

Depending on the type of work, the floating fixation mode and the floating mode can be installed on any section of the hydraulic distributor!

The presence of a floating state allows this model to be used in agricultural and communal equipment, where it is necessary to ensure the appropriate mode of operation. For example, a plow. The "with fixation" function means that all lever positions, including floating ones, are fixed. The lever is set by the operator in a certain position and will remain in it until a mechanical switch to another position occurs.

The electro-hydraulic control option is designed for the standard monoblock valve P80.
Installed on garbage trucks MKM-45 (Ryazan car repair plant) and their modifications.
Full labeling 2P80-VRP-1A1ED3 A1ED3 G KZ1 CEED2-VRE 24V.
Analog VD8A/DD 623508750 and VDM8/DD/ U8G 623202210 Salami Italy
