Motor hidrolik Hydro-pack MS 200 C
M+S HYDRAULIC
Main image
Click to view image in fullscreen
![]()
Persediaan
SKU
1022294511
Rp 6.458.794,88
Deskripsi / Motor hidrolik Hydro-pack MS 200 C

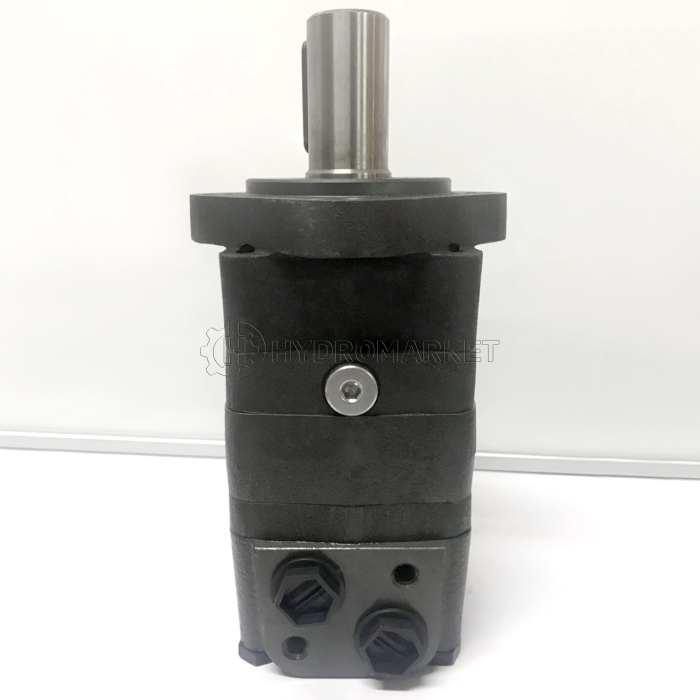

Hydrо-pack MS 200 С hydraulic motor
The MS series has a spool valve: the distribution valve is built into the output shaft. The drive shaft thus rotates the distribution valve and mechanical mechanism from the generator to the output shaft.
Main characteristics:
- Maximum speed, rpm: 375
- Maximum torque, Nm: 50
- Maximum pressure differential, bar: 175
- Maximum flow rate, l/min: 75
Options:
- Model - disc valve, roller-gerotor;
- Flange and wheel mounting;
- Short motor;
- Tachograph connection;
- Speed sensor connection;
- Lateral and rear ports;
- Shafts - straight, splined and tapered;
- Metric and BSPP ports;
- Other features.
Contact the manager for availability!
Informasi Lebih Lanjut
| Code 1C | 0А-47060 |
|---|---|
| Tipe motor hidrolik | Gerotor |
| Negara | Baru |
| Masa garansi, bulan | 12 |
| Merek | M+S Hydraulic |
| Negara Asal | Türkiye |
