Hidrolik silinder Hyva UMB 149-3-2230-K265-50-3/4 HC untuk bawah bak.

                 2230-K265-50-3/4 HC (underframe) Hyva

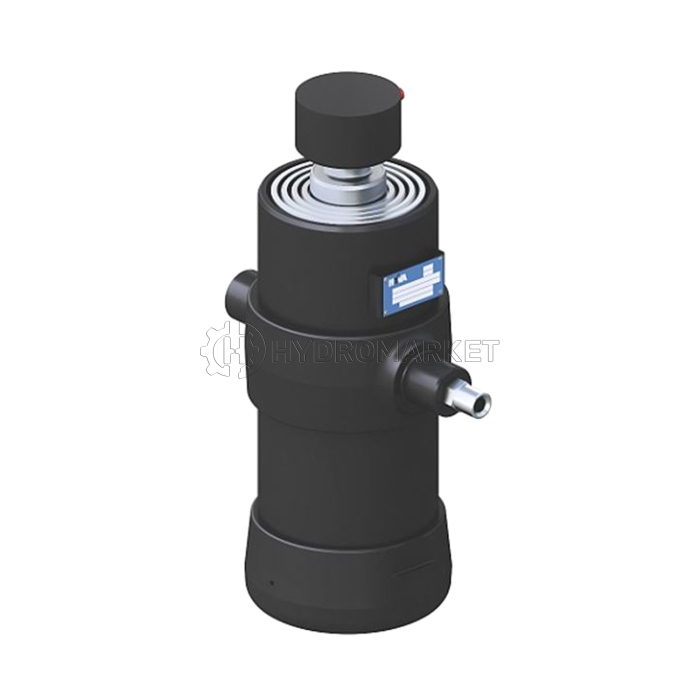

    Hydraulic underframe cylinders with spherical support for medium loads are one of the latest developments by HYVA. They are designed for dump trucks that unload on two or three sides. Usually used for small and medium-sized trucks with two or three axles. The compact cylinder design allows it to be installed on both the main chassis and the trailer. They are advantageous in quality and durability compared to analogues.

    Cylinders in this series are available with different diameters: from 129 mm, with two sections, to 191 mm, with eight sections. These cylinders are lightweight and consume less oil, so they lift and lower the body faster. They are strong and do not require technical maintenance.

Technical data:

Code:  71405637

• Load capacity 25-31 tons
• Weight 107 kg
• Volume 32.1 L

                                                   Cylinder modifications in the UMB series

Price with VAT 704 euros!

When ordering from us, there is a discount for installation at our service center. Quality guarantee for 12 months!
