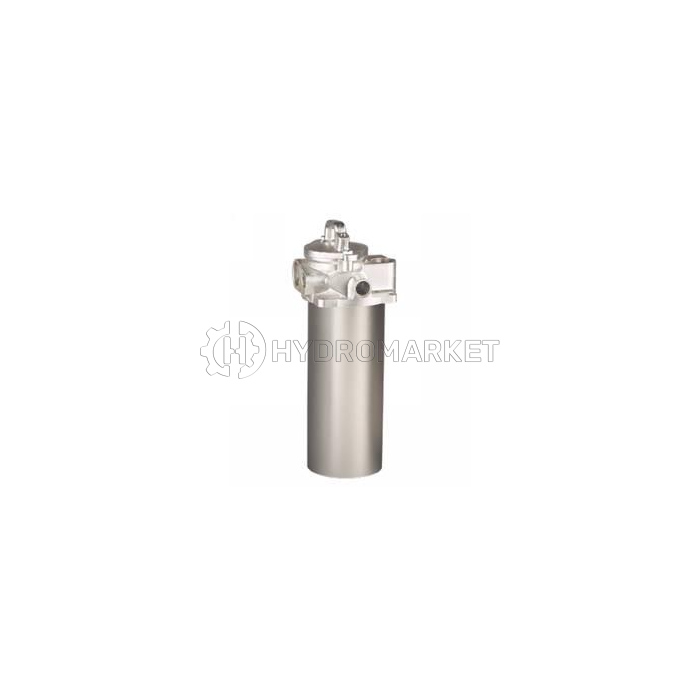

Filter drain/suction Hydac series RKMR

Filter Suction / Drain Hydac RKMR Series

Drain suction filters with magnetic candles

• Flow rate: up to 800 l/min
• Pressure stages: up to 10 bar
• Sizes: 600, 800
• Filter fineness: 5, 10, 20, 25 μm
• Designed for installation in tanks (only filter cover and mounting for the filter element)
• Leakage from inside to outside

Standard equipment: with bypass valve, with pressure relief valve, without cavitation valve.
Reverse lines RKMR and suction enhancement filters are ideal for use in equipment with two or more circuits. In particular, this filter is the first choice for mobile machines using hydrostatic drives (such as wheel loaders, forklifts, cleaning equipment).

Drain suction valves from HYDAC are used in systems where open circuits (working hydraulics) work with closed circuits (drive train). A portion of the total amount of finely filtered drained liquid is supplied to the feed pump with excess pressure, which is an effective protection against cavitation damage, especially during cold start. The drain suction valve combines the functions and advantages of a drain and suction hydraulic filter in one oil filter.
