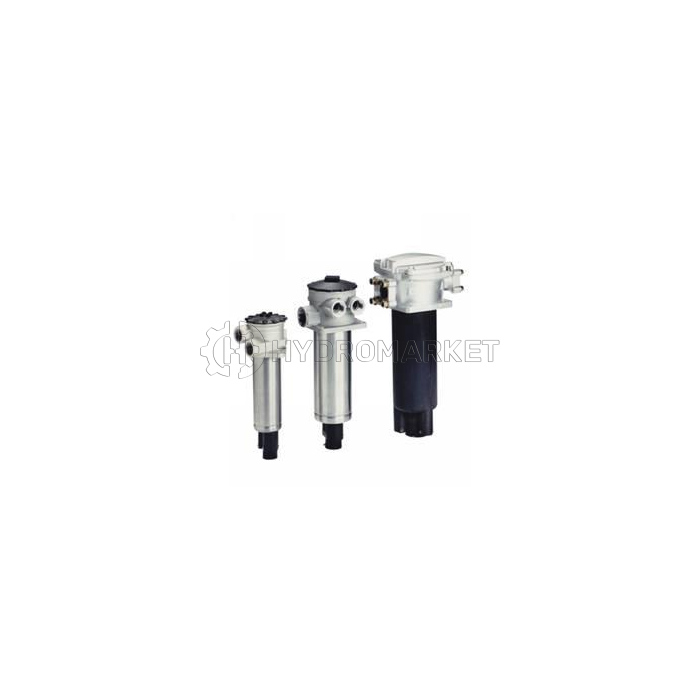

Filter saringan hisap/drainase seri Hydac RKM.

Filter drain / suction Hydac RKM series

• Volume flow rate: up to 800 l / min
• Pressure stages: up to 10 bar
• Connectors: from G¾ to SAE DN 50
• Sizes: 80, 100, 120, 151, 201, 251, 300, 350, 400, 800
• Optional with built-in thermal bypass valve

Standard equipment:
with bypass valve
with pressure relief valve
without cavitation valve
Reverse RKM lines and suction enhancement filters are ideal for use in equipment with two or more circuits. In particular, this filter is the first choice for mobile machines using hydrostatic drives (for example, wheel loaders, forklifts, cleaning equipment), if the reverse flow is greater than the flow required on the suction side according to operating conditions.
Reverse flow of working hydraulics is supplied to the filter through one or more inputs A and is cleaned by the filter element (full flow line filtration).
This ensures that the filtered return of the linear flow is available for hydrostatic
power pumps.

Drain suction valves from HYDAC are used in systems where open circuits (working hydraulics) operate with closed circuits (drive train). Part of the total amount of finely filtered drained liquid is supplied to the feed pump with excess pressure, which is effective protection against cavitation damage, especially during cold start. The drain suction valve combines in one oil filter the functions and advantages of a drain and suction hydraulic filter.

Check availability with the manager!
