Filter saringan Internormen seri TNRS

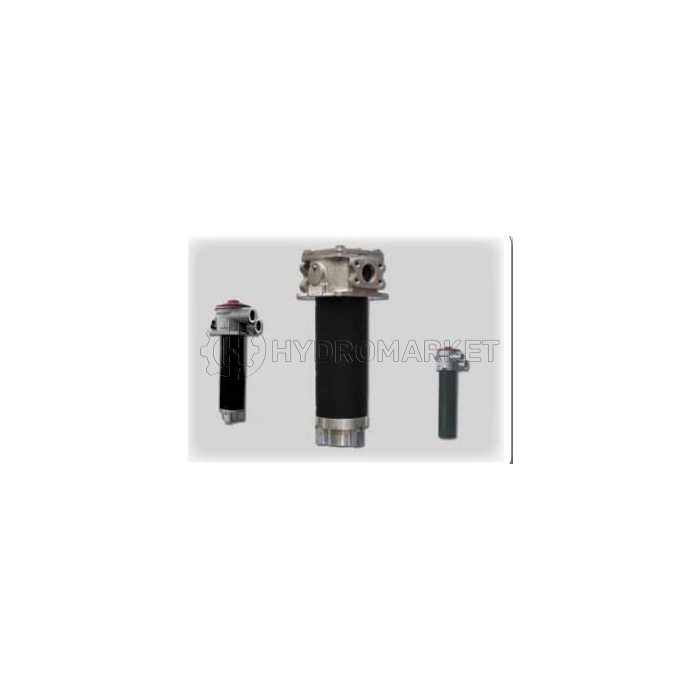

Filter drain Internormen TNRS series

Drain filter with suction connection for mobile hydraulic systems with at least two independent circuits.
connection: threaded up to G 1 ¼ ;, flanged up to SAE 2"

filtration fineness: 5, 7, 10, 15, 20, 25, 40, 80 microns

maximum flow rate: 100 l/min

maximum pressure: 10 bar

This type of filter optimizes the suction flow and eliminates cavitation. Construction changes are possible.

The TNRS 101 series filter series has a working pressure of up to 145 PSI.
The TNRS series is a built-in tank-mounted filter. In addition to the return connection, they have a suction connection on the clean side. This suction connection has a preload pressure (supply pressure) of 7.25 PSI. This combination, the return line and the suction filter for the hydraulic chain, is equipped with 2 feeding pumps (2 hydraulic circuits). Preload on the suction connection for full volume filtration
of the pump with lower flow volume. The filtering element according to DIN 24550, T4 consists of a star-shaped, corrugated filter material, which is supported inside a perforated tube and connected to the end caps with high-quality adhesive. Flow direction from outside to inside. Filtering elements are available up to 4 microns (c).
Equipped with Eaton filtering elements, which are known for their high quality and excellent filtration capacity, high dirt retention capacity and long service life.
Eaton filtering elements can be used to clean oil-based liquids, HW emulsions, water glycols, most synthetic liquids and lubricants.

When changing the filtering element, the removable connection between the filtering head and the filtering cup prevents dirty oil from leaking into the tank.
