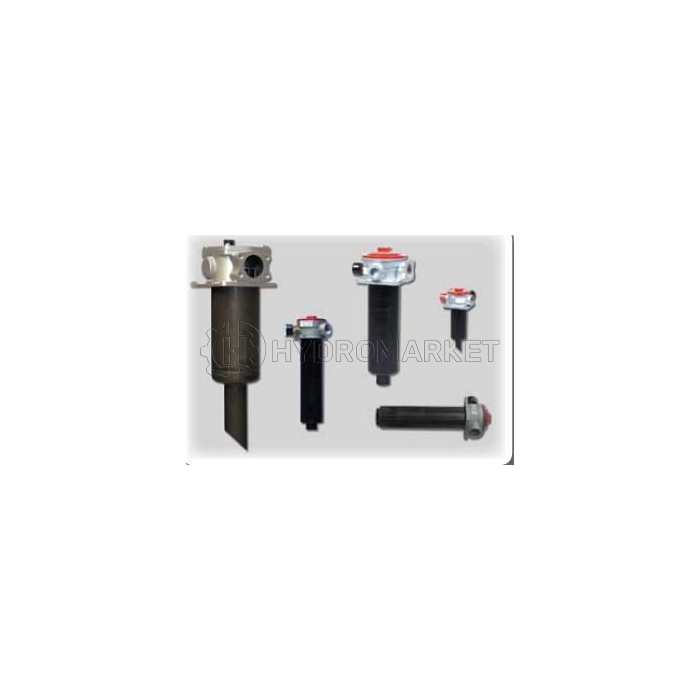

Filter sump Internormen seri TEF

Filter drain Internormen series TEF

filter fineness: 5, 7, 10, 15, 20, 25, 40, 80 microns

maximum flow rate: 950 l/min

maximum pressure: 10 bar

connection: threaded up to G 1 ½, flanged up to SAE 5“ or DN 200.

TEF series filters with a return line have a working pressure of up to 145 PSI. Pressure spikes can be absorbed with sufficient strength margin. TEF filters are directly mounted in the tank
and connected to the return line.

The filtering element consists of a star-shaped, corrugated filter material, which is supported inside a perforated tube and connected to the end covers with high-quality glue. Flow direction from outside to inside. Filtering elements are available up to 4 microns (c).
Equipped with Eaton filtering elements, which are known for their high quality and excellent filtration capacity, high dirt retention capacity, and long service life.
Eaton filtering elements can be used for cleaning oil-based liquids, HW emulsions, water glycols, most synthetic liquids, and lubricating liquids.

When changing the removable filtering element, the connection between the filtering head and the filtering bowl prevents dirty oil from leaking into the tank.
