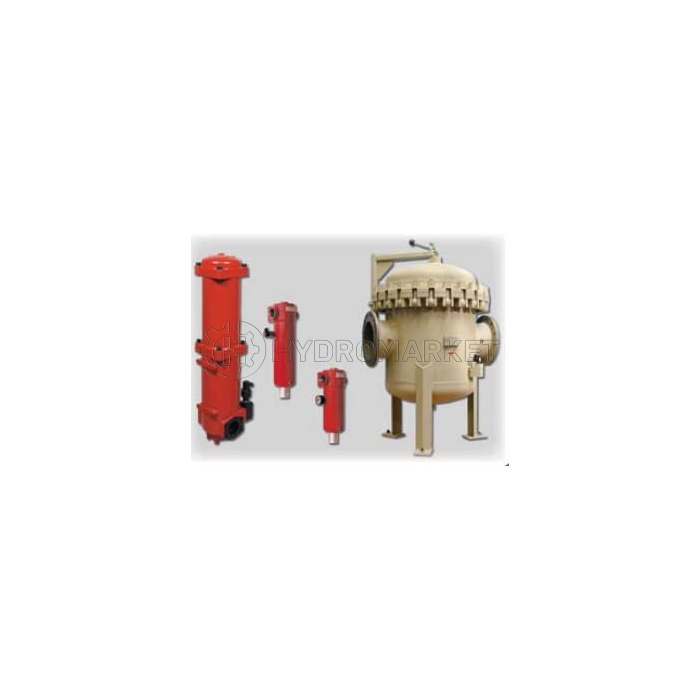

Filter drain Internormen seri RF

Filter drain Internormen RF series

For installation in suction, pressure or drain lines.
Connection: threaded up to G ¾, flanged up to DIN/ANSI 10”

filtration fineness: 5, 7, 10, 15, 20, 25, 40, 80 microns

maximum flow rate: 210 l/min

maximum pressure: 10 bar

The RF 210-320 series of reverse line filters has a working pressure of up to 145 PSI. The high-pressure filter is mounted in the reverse line. The reverse tubes on the outlet connection must be less than 39 inches long. To clean the mesh or fiberglass elements, remove the cover and remove the element. Mesh elements do not guarantee 100% performance after cleaning. The filtering element consists of a star-shaped, corrugated filter material, which is supported inside a perforated tube and connected to the end covers with high-quality adhesive. Flow direction from outside to inside. Filtering elements are available down to 4 microns (c). Equipped with Eaton filtering elements, which are known for their high quality and excellent filtration capacity, high dirt-holding capacity, and long service life. Eaton filtering elements can be used for cleaning oil-based liquids, HW emulsions, water glycols, most synthetic liquids, and lubricating liquids.
