Filter drain Ikron series HF502/HF508

Filter drain Ikron series HF502/HF508

filter fineness: 3, 6, 10, 25, 60, 90, 125 microns

maximum flow rate: 1000 l/min

maximum pressure: 8 bar

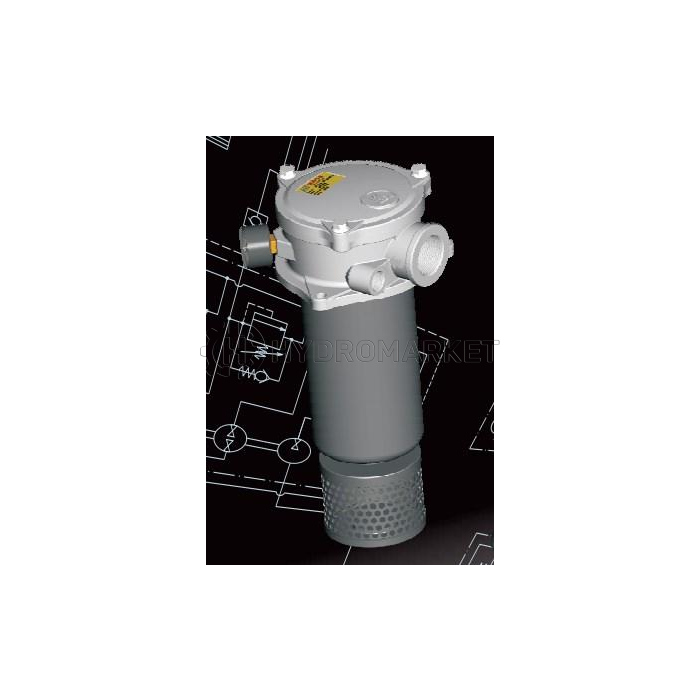

Filters HF 502 and HF 508, installed in the reservoir, are specially designed for direct connection on the return line of the hydraulic circuit to protect it from contaminating particles.
The HF 508 series comes with a double inlet with SAE 3000 thread.
Flow rate up to 264 gallons per minute (1000 l/min)
Expansion of oil outlet from pipe connection. Fluid-slowing diffuser.
MATERIALS
Cover: Aluminum, Household aluminum
Bowl (1): Reinforced nylon
Seals Buna - Viton
End cover: Galvanized steel
Inner pipe: Galvanized steel, Stainless steel
Filter media: Cellulose, Reinforced cellulose, Microfiber glass
- Filters sizes 10.060, 10.129, 20.077, 20.122, 20.201,
20.280 and 30.195 are supplied with reinforced nylon bowl. With a lacquered steel bowl is provided upon request.
- Filters dimensions 30.239, 40.122, 40.194, 40.195, 40.239, 40.390
and 40.512 are supplied only with a swirling steel bowl.
FLUID COMPATIBILITY
According to ISO 2943 (ISO 6743/4 standard)
Mineral oils (2) HH - HL - HM - HR - HV - HG
Water-based emulsion (2) HFAE - HFAS
Synthetic fluid (3) HS - HFDR - HFDU - HFDS
LEAK
Max. 264 g/US gal (1000 l/min)
PRESSURE
Operating pressure: 116 psi (8 bar)
Test pressure: 174 psi (12 bar)
Burst pressure: 232 psi (16 bar)
Impulse pressure: (according to ISO 2941) 145 pounds per square inch (10 bar)
RELIEF VALVE
Bypass setting 25 pounds per square inch (1.7 bar)
