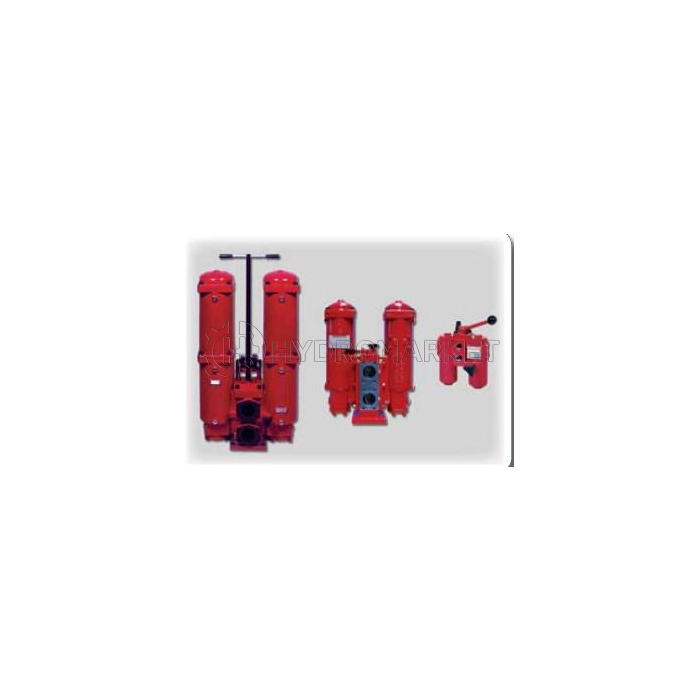

Filter linear Internormen seri DU

Filter switchable linear Internormen series DU

The pressure filter consists of two chambers, only one of which is in operation, while the other can replace the filter element. Installation can be done in the suction, pressure or drain line. The ball switch between the two filter housings allows switching from a dirty filter element to a clean reserve side without stopping the work process. Connection: threaded up to G ¾ ;, flanged up to SAE 5 “

filtration fineness: 5, 7, 10, 15, 20, 25, 40, 80 microns

maximum flow rate: 4000 l / min

maximum pressure: 32 bar

The duplex filter series DU63 has a working pressure up to 464 PSI. Pressure spikes can be absorbed by a sufficient safety factor.

To clean the mesh element or change the microglass element, remove the cover and remove the element. Mesh elements do not guarantee 100% performance after cleaning.

The filter element consists of a star-shaped, corrugated filter material, which is supported inside a perforated tube and connected to the end covers with high-quality adhesive. Flow direction from outside to inside. Filtering elements are available up to 4 microns (c). Equipped with Eaton filter elements, which are known for their high quality and excellent filtration capacity, high dirt holding capacity and long service life. Eaton filter elements can be used to clean oil-based liquids, HW emulsions, water glycols, most synthetic liquids and lubricants.

For filtration less than 40 microns, use disposable microfiber elements. The bypass valve is built into the filter cover. After reaching the bypass pressure setting, the bypass valve will send an unfiltered partial flow around the filter. Ship classification is provided upon request.
